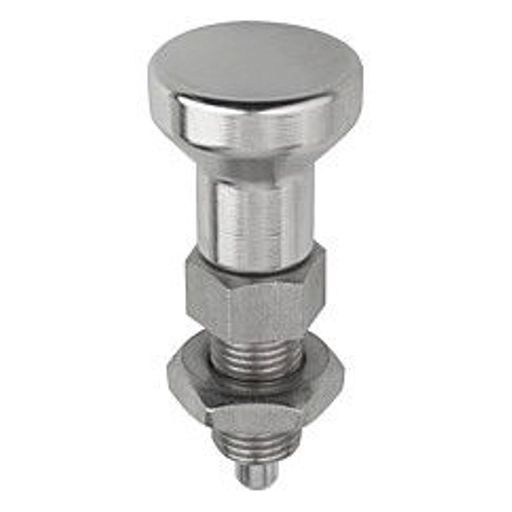

Indexing Plunger. M10 Thread. 1mm Thread Pitch. 5mm Pin Diameter. Without Locking Slot. Hardened. Stainless Steel.

Item Code: K0632.002105

Indexing Plunger. M10 Thread. 1mm Thread Pitch. 5mm Pin Diameter. Without Locking Slot. Hardened. Stainless Steel.

Item Code: K0632.002105

Indexing Plunger. M10 Thread. 1mm Thread Pitch. 5mm Pin Diameter. Without Locking Slot. Hardened. Stainless Steel.

Material:
- Locking pin hardened:
threaded sleeve 303 Stainless Steel.
Locking pin 1.4034.
- Locking pin not hardened:
threaded sleeve 303 Stainless Steel.
Locking pin 303 Stainless Steel. Mushroom knob 303 Stainless Steel, electrolytic-polish. Surface finish:
Natural finish.
Locking pin ground.
Note:
Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been manually disengaged. Form C or D is recommended for applications in which gradual disengagement of the locking bolt is desired, without any relocking of the locking pin.

Quick Links

Dispatch by 09/08/26

D: 5

D1: M10X1

D2: 21

Fx30°: 1.3

L: 50

L1: 17

L2: 7

L3: 15

Locknut: with locknut

Lockout: No

Spring force final pressure F2 approx. N: 12

Spring force initial pressure F1 approx. N: 5

Surface finish / body: Hardened

SW1: 13

Travel S: 5

£20.06 ea. Excl VAT £24.07 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£16.45	18%

Next Working Day Delivery on All In-Stock Products

modal placeholder

Quick Links

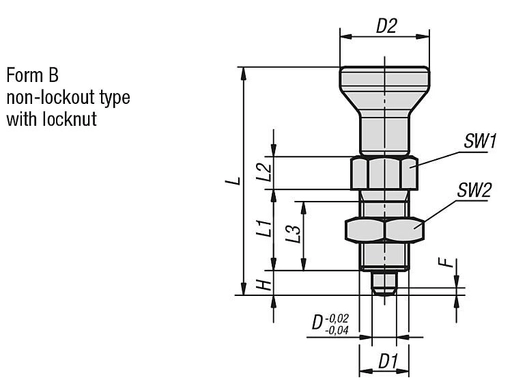

Product Dimensions

D	5
L	50
L1	17
L2	7
L3	15
D1	M10X1
D2	21
SW1	13
Locknut	with locknut
Fx30°	1.3
Lockout	No
Spring force final pressure F2 approx. N	12
Spring force initial pressure F1 approx. N	5
Surface finish / body	Hardened
Travel S	5

CAD Download
