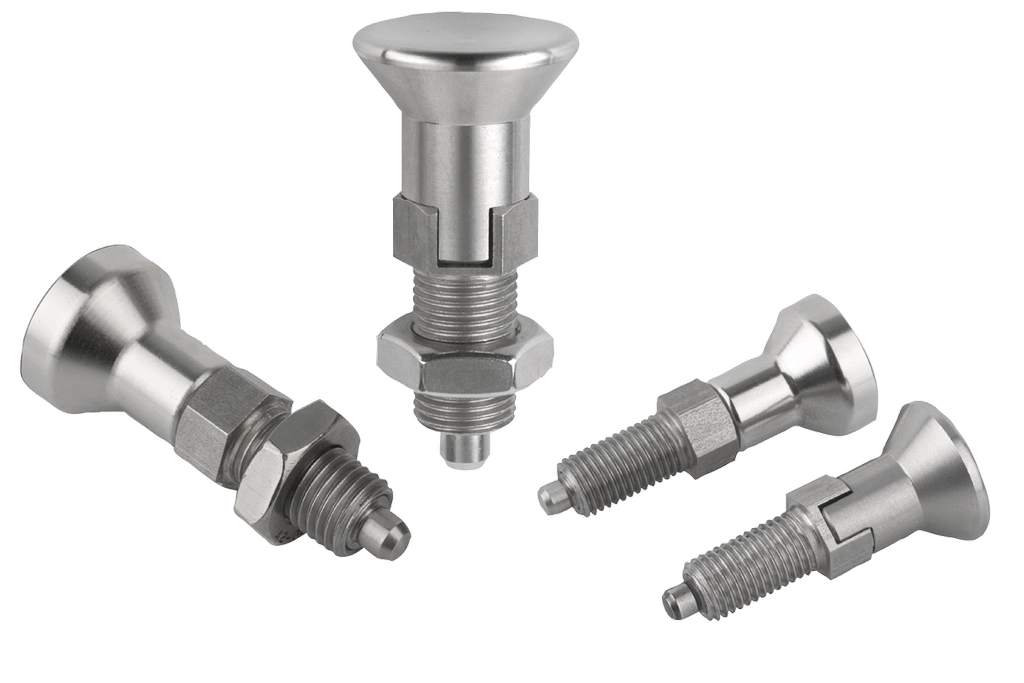

K0632 Inch - Indexing Plungers In Stainless Steel With Mushroom Grip

K0632 Inch - Indexing Plungers In Stainless Steel With Mushroom Grip

Product Description:
Indexing plungers are used to prevent any change in position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. style D is recommended for applications in which the pin is disengaged over extended periods and should be prevented from springing back.

Material:
Threaded sleeve and mushroom grip 1.4305 (AISI 303 equivalent).
Indexing pin hardened 1.4034 (AISI 420 equivalent).
Indexing pin not hardened 1.4305 (AISI 303 equivalent).

Mushroom grip. thermoplastic.

Version:
Threaded sleeve and mushroom grip bright.
Indexing pin hardened and ground, bright.
Indexing pin not hardened and ground, bright.

Mushroom grip thermoplastic black gray RAL7021.

Drawing Reference:
style B: non-lockout type, with locknut
style D: lockout type, with locknut

Note:
For the inch range dimension D1 is in iches, all other dimensions are in mm.

Select your sizes

Line drawing placeholder

Move drawing here

	D	D1	D2	Fx30°	L	L1	L2	L3	Lockout	Material	Spring force final pressure F2 approx. N	Spring force initial pressure F1 approx. N	Style	Surface Body finish	SW1	SW2	Price (Exc. Tax)	Stock
Filters
K0632.004516A8 View product	16	1-8	40	3.2	96	32	18	27	Yes	Stainless Steel	46	20	D	Hardened	27	1-1/2	£89.05	0
K0632.114516A8 View product	16	1-8	40	3.2	96	32	18	27	Yes	Stainless Steel	46	20	D	Not Hardened	27	1-1/2	£89.05	0
K0632.002516A8 View product	16	1-8	40	3.2	106	32	18	28	No	Stainless Steel	46	20	B	Hardened	27	1-1/2	£65.02	0
K0632.112516A8 View product	16	1-8	40	3.2	106	32	18	28	No	Stainless Steel	46	20	B	Not Hardened	27	1-1/2	£65.02	0
K0632.004206A5 View product	6	1/2-13	25	1.8	52	20	8	16	Yes	Stainless Steel	14	6	D	Hardened	14	3/4	£28.21	0
K0632.114206A5 View product	6	1/2-13	25	1.8	52	20	8	16	Yes	Stainless Steel	14	6	D	Not Hardened	14	3/4	£28.21	0
K0632.002206A5 View product	6	1/2-13	25	1.8	59	20	8	17	No	Stainless Steel	14	6	B	Hardened	14	3/4	£21.23	0
K0632.112206A5 View product	6	1/2-13	25	1.8	59	20	8	17	No	Stainless Steel	14	6	B	Not Hardened	14	3/4	£21.23	0
K0632.004903AJ View product	3	1/4-28	14	0.8	31.5	12	5	10	Yes	Stainless Steel	10	4.5	D	Hardened	8	7/16	£26.39	0
K0632.114903AJ View product	3	1/4-28	14	0.8	31.5	12	5	10	Yes	Stainless Steel	10	4.5	D	Not Hardened	8	7/16	£26.39	0
K0632.002903AJ View product	3	1/4-28	14	0.8	34.5	12	5	10	No	Stainless Steel	10	4.5	B	Hardened	8	7/16	£22.12	0
K0632.112903AJ View product	3	1/4-28	14	0.8	34.5	12	5	10	No	Stainless Steel	10	4.5	B	Not Hardened	8	7/16	£22.12	0
K0632.004410A7 View product	10	3/4-10	33	2.6	74	28	12	23	Yes	Stainless Steel	34	15	D	Hardened	22	1-1/8	£49.90	0
K0632.114410A7 View product	10	3/4-10	33	2.6	74	28	12	23	Yes	Stainless Steel	34	15	D	Not Hardened	22	1-1/8	£49.90	0
K0632.002410A7 View product	10	3/4-10	33	2.6	83	28	12	25	No	Stainless Steel	34	15	B	Hardened	22	1-1/8	£36.43	0
K0632.112410A7 View product	10	3/4-10	33	2.6	83	28	12	25	No	Stainless Steel	34	15	B	Not Hardened	22	1-1/8	£36.43	0
K0632.004412AO View product	12	3/4-16	33	2.8	78	28	14	23	Yes	Stainless Steel	39	15	D	Hardened	22	1-1/8	£78.36	0
K0632.114412AO View product	12	3/4-16	33	2.8	78	28	14	23	Yes	Stainless Steel	39	15	D	Not Hardened	22	1-1/8	£78.36	0
K0632.002412AO View product	12	3/4-16	33	2.8	87	28	14	25	No	Stainless Steel	39	15	B	Hardened	22	1-1/8	£57.21	0
K0632.112412AO View product	12	3/4-16	33	2.8	87	28	14	25	No	Stainless Steel	39	15	B	Not Hardened	22	1-1/8	£57.21	0
K0632.004105AL View product	5	3/8-24	21	1.3	43.5	17	7	15	Yes	Stainless Steel	12	4.5	D	Hardened	13	9/16	£23.93	0
K0632.114105AL View product	5	3/8-24	21	1.3	43.5	17	7	15	Yes	Stainless Steel	12	4.5	D	Not Hardened	13	9/16	£23.93	0
K0632.002105AL View product	5	3/8-24	21	1.3	50	17	7	15	No	Stainless Steel	12	4.5	B	Hardened	13	9/16	£18.11	0
K0632.112105AL View product	5	3/8-24	21	1.3	50	17	7	15	No	Stainless Steel	12	4.5	B	Not Hardened	13	9/16	£18.11	0
K0632.004004AK View product	4	5/16-24	18	1	38.5	15	6	12	Yes	Stainless Steel	12	6	D	Hardened	10	1/2	£25.13	0
K0632.114004AK View product	4	5/16-24	18	1	38.5	15	6	12	Yes	Stainless Steel	12	6	D	Not Hardened	10	1/2	£25.13	0
K0632.002004AK View product	4	5/16-24	18	1	43	15	6	13	No	Stainless Steel	12	6	B	Hardened	10	1/2	£21.04	0
K0632.112004AK View product	4	5/16-24	18	1	43	15	6	13	No	Stainless Steel	12	6	B	Not Hardened	10	1/2	£21.04	0
K0632.004308A6 View product	8	5/8-11	33	2.3	68	26	10	21	Yes	Stainless Steel	35	15	D	Hardened	19	15/16	£38.46	0
K0632.114308A6 View product	8	5/8-11	33	2.3	68	26	10	21	Yes	Stainless Steel	35	15	D	Not Hardened	19	15/16	£38.46	0
K0632.002308A6 View product	8	5/8-11	33	2.3	77	26	10	23	No	Stainless Steel	35	15	B	Hardened	19	15/16	£28.36	0
K0632.112308A6 View product	8	5/8-11	33	2.3	77	26	10	23	No	Stainless Steel	35	15	B	Not Hardened	19	15/16	£28.36	0
