Item Code: K0631.890384

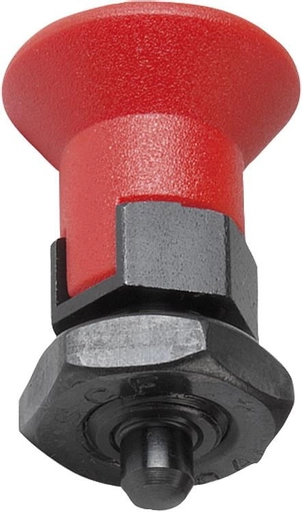

Indexing Plunger. M6 Thread. 0.75mm Thread Pitch. 3mm Pin Diameter. With Locking Slot. Hardened. Steel.

Item Code: K0631.890384

Indexing Plunger. M6 Thread. 0.75mm Thread Pitch. 3mm Pin Diameter. With Locking Slot. Hardened. Steel.

Material:
Steel version:
Indexing pin hardened:
grade 5.8
Stainless steel version:
Indexing pin not hardened
Threaded sleeve 1.4305
Indexing pin 1.4305
Mushroom knob black grey thermoplastic.
Version:
Steel version:
Indexing pin hardened, ground, black oxidised.
Stainless steel version:
Indexing pin not hardened, ground, bright.
Note:
Indexing plungers are used to prevent any change in position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications in which the pin is disengaged over extended periods and should be prevented from springing back.

Quick Links

Dispatch by 19/07/25

Red
3
M6x0.75
14
0.8
5.8
25.5
6
5
with locknut
Yes
10
4
Hardened
8
3.5

£11.92  ea. Excl VAT £14.30  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £9.77 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Steel version:
Indexing pin hardened:
grade 5.8
Stainless steel version:
Indexing pin not hardened
Threaded sleeve 1.4305
Indexing pin 1.4305
Mushroom knob black grey thermoplastic.
Version:
Steel version:
Indexing pin hardened, ground, black oxidised.
Stainless steel version:
Indexing pin not hardened, ground, bright.
Note:
Indexing plungers are used to prevent any change in position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications in which the pin is disengaged over extended periods and should be prevented from springing back.
Component colourRed
D3
D1M6x0.75
D214
Fx30°0.8
Grade5.8
L25.5
L16
L25
Locknutwith locknut
LockoutYes
Spring force final pressure F2 approx. N10
Spring force initial pressure F1 approx. N4
Surface finish / bodyHardened
SW18
Travel S3.5
STP
TypeLockout
Body MaterialSteel
Thread SizeM6
Pin Diameter3mm
Pin Length3.5mm
