Item Code: K0631.16004

Indexing Plunger. M8 Thread. 1mm Thread Pitch. 4mm Pin Diameter. Without Locking Slot. Not Hardened. Stainless Steel.

Item Code: K0631.16004

Indexing Plunger. M8 Thread. 1mm Thread Pitch. 4mm Pin Diameter. Without Locking Slot. Not Hardened. Stainless Steel.

Material:
- Steel version, locking pin hardened:
quality class 5.8.
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305.
Locking pin 1.4305. Mushroom knob in anthracite grey thermoplastic. Surface finish:
- Steel version, locking pin hardened:
black oxide finish. Locking pin ground.
- Stainless steel version, locking pin not hardened:
natural finish.
Locking pin ground. Note:
Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been manually disengaged. Form C or D is recommended for applications in which gradual disengagement of the locking bolt is desired, without any relocking of the locking pin.

Quick Links

Dispatch by 19/07/25

Black
4
M8X1
18
1
29.5
6
6
with locknut
No
12
4
Not Hardened
10
13
4

£14.91  ea. Excl VAT £17.89  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £12.23 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
- Steel version, locking pin hardened:
quality class 5.8.
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305.
Locking pin 1.4305. Mushroom knob in anthracite grey thermoplastic. Surface finish:
- Steel version, locking pin hardened:
black oxide finish. Locking pin ground.
- Stainless steel version, locking pin not hardened:
natural finish.
Locking pin ground. Note:
Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been manually disengaged. Form C or D is recommended for applications in which gradual disengagement of the locking bolt is desired, without any relocking of the locking pin.

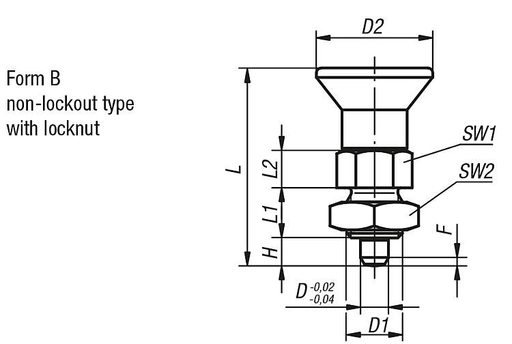

Component colourBlack
D4
D1M8X1
D218
Fx30°1
L29.5
L16
L26
Locknutwith locknut
LockoutNo
Spring force final pressure F2 approx. N12
Spring force initial pressure F1 approx. N4
Surface finish / bodyNot Hardened
SW110
SW213
Travel S4
STP
TypeNon Lockout
Body MaterialStainless Steel
Thread SizeM8
Pin Diameter4mm
Pin Length4mm
