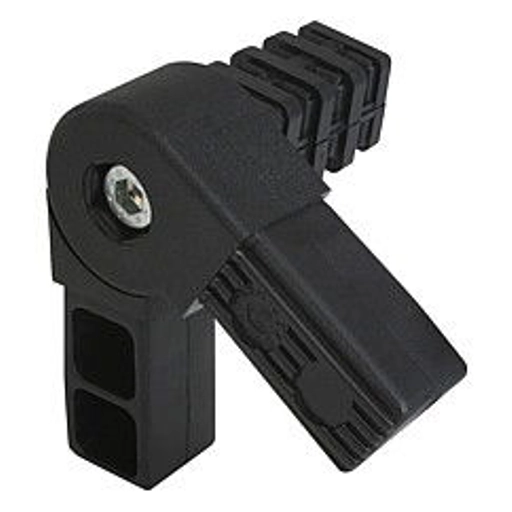

Tube Connector Plug. 3 Way With Hinge. To Suit 25mm Square Tube. 59mm Length. Plastic.

Item Code: K0626.1251512

Tube Connector Plug. 3 Way With Hinge. To Suit 25mm Square Tube. 59mm Length. Plastic.

Item Code: K0626.1251512

Tube Connector Plug. 3 Way With Hinge. To Suit 25mm Square Tube. 59mm Length. Plastic.

Material, surface finish:
Polyamide PA, black.
Socket head screw to DIN 6912 and hexagon nut DIN 934, galvanized steel. Note:
The plug connectors are simply inserted into the corresponding square tube. They can be disassembled and used again. The specified adjustment range can be aligned continuously. The outlet can be revolved around its own axis. Accessory:
- Square tubes K0627
- Sqaure tubes with a bridge K0628

Quick Links

Dispatch by 13/02/26

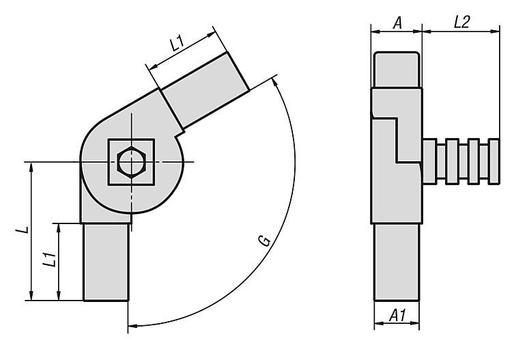

A: 25

A1: 22

G: 45° - 195°

L: 59

L1: 38

L2: 42

Suitable for square tubes: 25 x 25 x 1.5

Was £5.51 Save 50% £2.76 ea. Excl VAT Was £6.61 Save 50% £3.31 ea. Inc VAT
