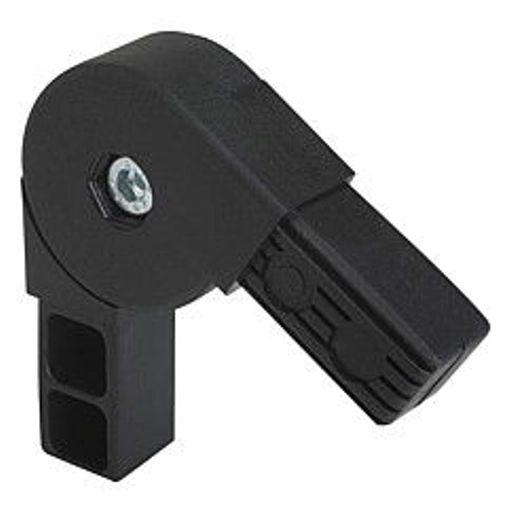

Tube Connector Plug. 2 Way With Hinge. To Suit 25mm Square Tube. 68mm Length. Plastic.

Item Code: K0625.1251511

Tube Connector Plug. 2 Way With Hinge. To Suit 25mm Square Tube. 68mm Length. Plastic.

Item Code: K0625.1251511

Tube Connector Plug. 2 Way With Hinge. To Suit 25mm Square Tube. 68mm Length. Plastic.

Material, surface finish:
Polyamide PA, black.
Socket head screw to DIN 6912 and hexagon nut DIN 934, galvanized steel. Note:
The plug connectors are simply inserted into the corresponding square tube. They can be disassembled and used again. The specified adjustment range can be aligned continuously. Accessory:
- Square tubes K0627
- Sqaure tubes with a bridge K0628

Quick Links

Dispatch by 09/06/25

L: 68

L1: 38

A: 25

G: 0° - 190°

A1: 22

Suitable for square tubes: 25 x 25 x 1,5

£4.16 ea. Excl VAT £4.99 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
30 +	£3.49	16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

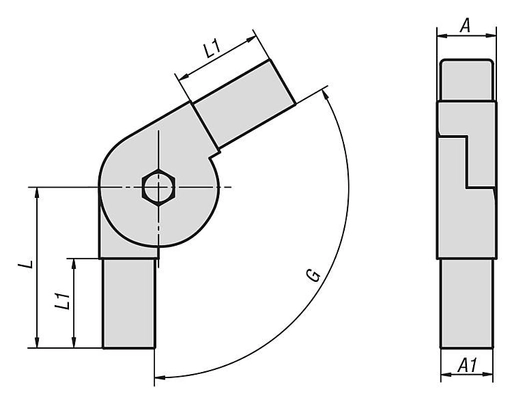

Product Dimensions

L	68
L1	38
A	25
G	0° - 190°
A1	22
Suitable for square tubes	25 x 25 x 1,5

Downloads

STP

Specifications

Tube Style	Square
Tube Size	25mm
Material	Plastic
