Double Ball Catch. 60mm Length. Stainless Steel Balls.

Item Code: K0583.60

Double Ball Catch. 60mm Length. Stainless Steel Balls.

Item Code: K0583.60

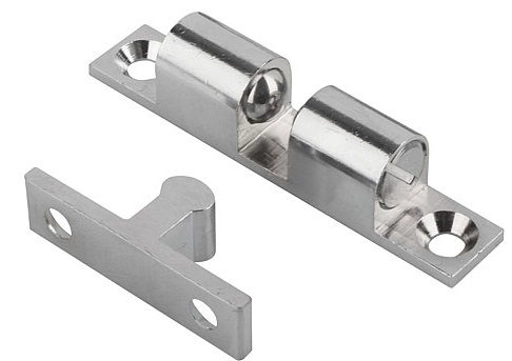

Double Ball Catch. 60mm Length. Stainless Steel Balls.

Material, surface finish:
Housing and latching pawl in chromium-plated brass.
Balls and springs in stainless steel. Note:

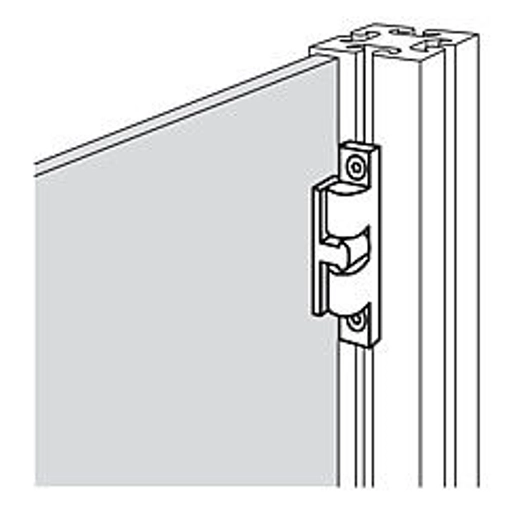

Quick closure for diverse applications such as holding doors, flaps and blinds shut. The double ball catch consists of a bush and an opposing piece, the latching pawl, which engages with the bush. The latching pawl can be pushed into the bush laterally or frontally. The engagement pressure is adjustable.

Quick Links

Dispatch by 04/07/25

A: 50

A1: 24

B: 11

B1: 9

B2: 13,5

Clamping force ca. N: 30±7

D: 4,8

H: 13,2

H1: 2,4

H2: 13,5

H3: 2,2

H4: 15,9

L: 60

L1: 36

£6.49 ea. Excl VAT £7.79 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
25 +	£5.32	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

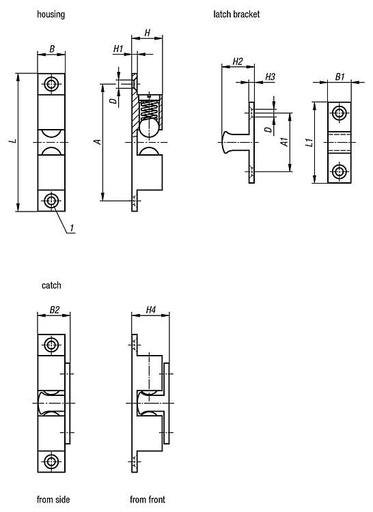

Product Dimensions

A	50
A1	24
B	11
B1	9
B2	13,5
Clamping force ca. N	30±7
D	4,8
H	13,2
H1	2,4
H2	13,5
H3	2,2
H4	15,9
L	60
L1	36
