Item Code: K0576.05003555

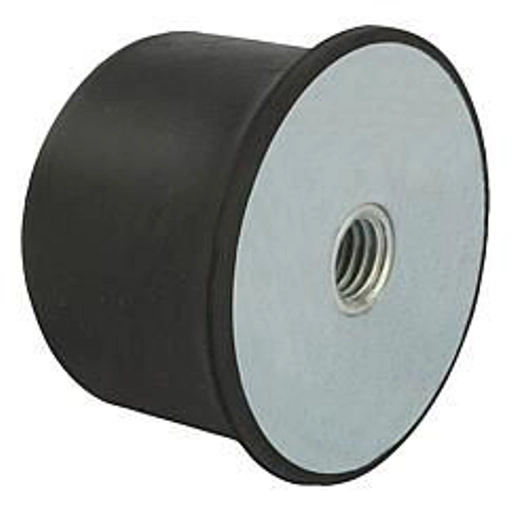

Rubber Metal Buffer. Anti Vibration Mount. 50mm Diameter. 35mm High. M10 Thread. Steel.

Item Code: K0576.05003555

Rubber Metal Buffer. Anti Vibration Mount. 50mm Diameter. 35mm High. M10 Thread. Steel.

Material, surface finish:
Metal parts, galvanized steel, class 5.6;
elastomer, natural rubber, medium hardness, 57° Shore A Note:
The rubber-metal buffers are widely-used construction devices for elastic bearings. They are used, among other things, as bearings for assemblies, motors, compressors, pumps and testing machines. Rubber-metal buffers with tapered rubber contour reduce high edge loads of the rubber in case of axial excursion and thus increase the service life of the component. Temperature range:
-30 up to +80 °C.

Quick Links

8 in stock

50
M10
35
2200
55A
15
10

£4.59  ea. Excl VAT £5.51  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
30 + £3.86 16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material, surface finish:
Metal parts, galvanized steel, class 5.6;
elastomer, natural rubber, medium hardness, 57° Shore A Note:
The rubber-metal buffers are widely-used construction devices for elastic bearings. They are used, among other things, as bearings for assemblies, motors, compressors, pumps and testing machines. Rubber-metal buffers with tapered rubber contour reduce high edge loads of the rubber in case of axial excursion and thus increase the service life of the component. Temperature range:
-30 up to +80 °C.

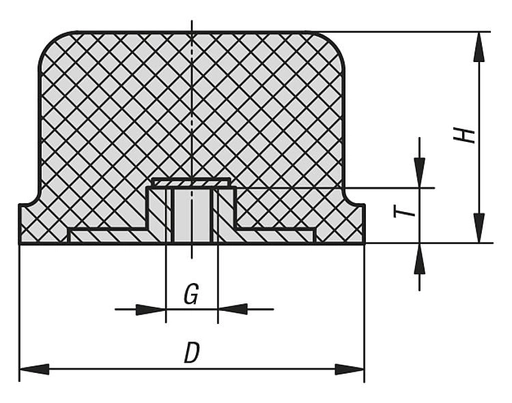

D50
GM10
H35
Load , N2200
Shore grade55A
Spring stiffness N/mm15
T10
STP
Thread SizeM10
Diameter50mm
Height35mm
MaterialSteel
HardnessShore 55A
