K0574 - Rubber Impact Buffer Medium Hardness Size M6-M12

List view Grid view
K0574 - Rubber Impact Buffer Medium Hardness Size M6-M12

Material, surface finish:
Metal parts, galvanized steel, class 5.6;
elastomer, natural rubber, medium hardness, 57° Shore A Note:
The rubber-metal buffers are widely-used construction devices for elastic bearings. They are used, among other things, as bearings for assemblies, motors, compressors, pumps and testing machines. Rubber-metal buffers with tapered rubber contour reduce high edge loads of the rubber in case of axial excursion and thus increase the service life of the component. Temperature range:
-30 up to +80 °C.
Rubber Metal Buffer. Anti Vibration Mount. 20mm Diameter. 24mm High. M6x18mm Thread. Steel.

K0574 - Rubber Impact Buffer Medium Hardness Size M6-M12

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm and Over

Choose Type

Hook

Latch

Vertical Latch

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Air Knife Only

Air Knife With Filter and Shim Set

Air Knife With Plumbing Kit Installed, Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Air Amplifier Only

Air Amplifier With Filter and Shim Set

Style

Air Amplifier Only

Air Amplifier With Filter

Item

Filter / Regulator

Air Amplifier Shim Set

Item

Filter / Regulator

Vortex Tube Generator

Vortex Tube Cold Silencer

Vortex Tube Hot Silencer

Style

Vortex Tube Only

Vortex Tube With Generator Kit, Muffler, Tubing And Filter

Clamp Type

Horizontal

Vertical

Latch

Vertical Latch

Clamp Type

Vertical

Press

Push-Pull

Clamp Type

Horizontal

Vertical

Hook

Latch

Vertical Latch

Push-Pull

Flip-Flop

Line drawing placeholder

Move drawing here

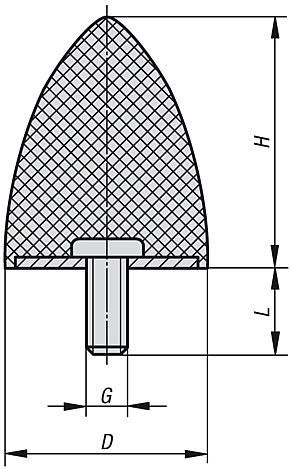

D G H L Load , N Shore grade Spring stiffness N/mm Price (Exc. Tax) Stock Qty basket

Filters

K0574.02002455
View product
20 M6 24 18 500 55A 14
£1.38
34
K0574.03003655
View product
30 M8 36 20 750 55A 15
£2.61
27
K0574.03504055
View product
35 M8 40 23 1750 55A 16
£3.23
0
K0574.05005855
View product
50 M10 58 28 3000 55A 30
£4.39
0
K0574.05006755
View product
50 M8 67 38 3200 55A 30
£7.21
5
K0574.07508955
View product
75 M12 89 37 8000 55A 50
£6.30
0

Showing products per page


£
£

34 in stock

Item Code: K0574.02002455

Rubber Metal Buffer. Anti Vibration Mount. 20mm Diameter. 24mm High. M6x18mm Thread. Steel.

£1.38  Excl VAT £1.66  Inc VAT

Price breaks available

Text

Qty

27 in stock

Item Code: K0574.03003655

Rubber Metal Buffer. Anti Vibration Mount. 30mm Diameter. 36mm High. M8x20mm Thread. Steel.

£2.61  Excl VAT £3.13  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K0574.03504055

Rubber Metal Buffer. Anti Vibration Mount. 35mm Diameter. 40mm High. M8x23mm Thread. Steel.

£3.23  Excl VAT £3.88  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K0574.05005855

Rubber Metal Buffer. Anti Vibration Mount. 50mm Diameter. 58mm High. M10x28mm Thread. Steel.

£4.39  Excl VAT £5.27  Inc VAT

Price breaks available

Text

Qty

5 in stock

Item Code: K0574.05006755

Rubber Metal Buffer. Anti Vibration Mount. 50mm Diameter. 67mm High. M8x38mm Thread. Steel.

£7.21  Excl VAT £8.65  Inc VAT

Price breaks available

Text

Qty

Dispatch by 28/10/25

Item Code: K0574.07508955

Rubber Metal Buffer. Anti Vibration Mount. 75mm Diameter. 89mm High. M12x37mm Thread. Steel.

£6.30  Excl VAT £7.56  Inc VAT

Price breaks available

Text

Qty
