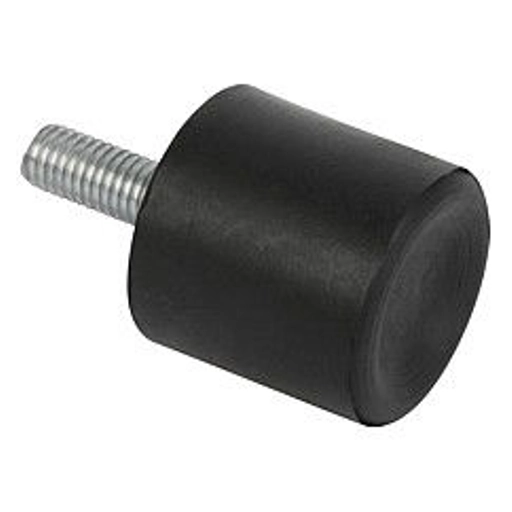

Rubber Metal Buffer. Anti Vibration Mount. 15mm Diameter. 14mm High. M4x13mm Thread. Steel.

Item Code: K0572.01501457

Rubber Metal Buffer. Anti Vibration Mount. 15mm Diameter. 14mm High. M4x13mm Thread. Steel.

Item Code: K0572.01501457

Rubber Metal Buffer. Anti Vibration Mount. 15mm Diameter. 14mm High. M4x13mm Thread. Steel.

Material, surface finish:
Metal parts, galvanized steel, class 5.6;
elastomer, natural rubber, medium hardness, 57° Shore A Note:
The rubber-metal buffers are used, among other things, for the bearing of aggregates and as a shock stop for the limitation of spring travel in the case of moving masses. Temperature range:
-30 up to +80 °C.

Quick Links

22 in stock

D: 15

G: M4

H: 14

L: 13

Load , N: 100

Shore grade: 57A

Spring stiffness N/mm: 50

£1.14 ea. Excl VAT £1.37 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£0.98	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

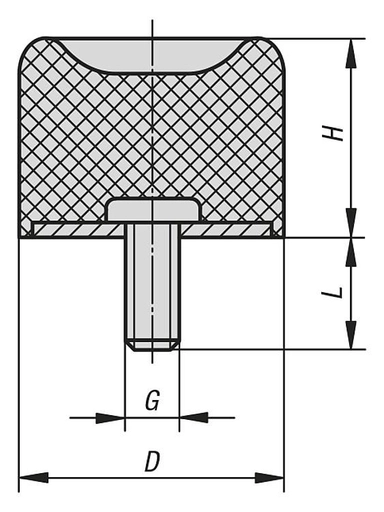

Product Dimensions

D	15
G	M4
H	14
L	13
Load , N	100
Shore grade	57A
Spring stiffness N/mm	50

Downloads

STP

Specifications

Thread Size	M4
Diameter	15mm
Height	14mm
Material	Steel
Hardness	Shore 57A

Rubber Metal Buffer. Anti Vibration Mount. 15mm Diameter. 14mm High. M4x13mm Thread. Steel.

Rubber Metal Buffer. Anti Vibration Mount. 15mm Diameter. 14mm High. M4x13mm Thread. Steel.
