Item Code: K0569.04003055

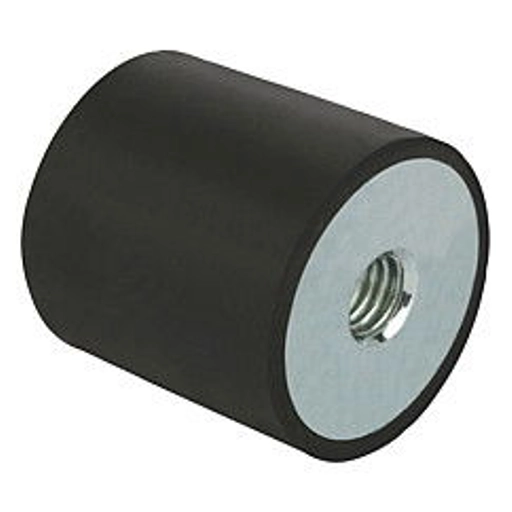

Rubber Metal Buffer. Anti Vibration Mount. 40mm Diameter. 30mm High. M8 Threads. Steel.

Item Code: K0569.04003055

Rubber Metal Buffer. Anti Vibration Mount. 40mm Diameter. 30mm High. M8 Threads. Steel.

Material, surface finish:
Metal parts, galvanized steel, class 5.6;
elastomer, natural rubber, medium hardness, 57° Shore A Note:
The rubber-metal buffers are widely-used construction devices for elastic bearings. They are used, among other things, as bearings for assemblies, motors, compressors, pumps and testing machines. Rubber-metal buffers with tapered rubber contour reduce high edge loads of the rubber in case of axial excursion and thus increase the service life of the component. Temperature range:
-30 up to +80 °C.

Quick Links

1 in stock

40
30
M8
8
530
55A
1060

£2.90  ea. Excl VAT £3.48  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
50 + £2.49 14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material, surface finish:
Metal parts, galvanized steel, class 5.6;
elastomer, natural rubber, medium hardness, 57° Shore A Note:
The rubber-metal buffers are widely-used construction devices for elastic bearings. They are used, among other things, as bearings for assemblies, motors, compressors, pumps and testing machines. Rubber-metal buffers with tapered rubber contour reduce high edge loads of the rubber in case of axial excursion and thus increase the service life of the component. Temperature range:
-30 up to +80 °C.

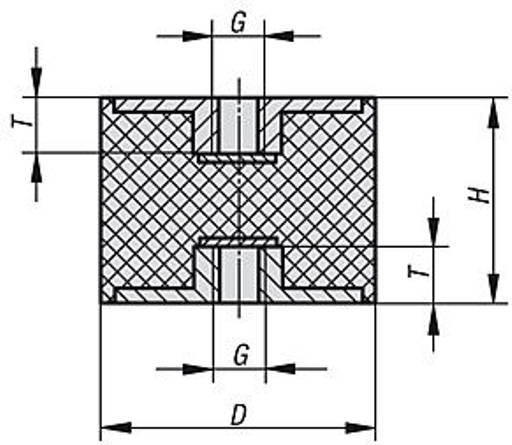

D40
H30
GM8
T8
Spring stiffness N/mm530
Shore grade55A
Load , N1060
Thread SizeM8
Diameter40mm
Height30mm
MaterialSteel
HardnessShore 55A
