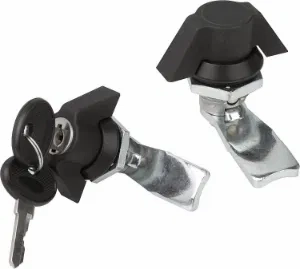

K0525 - Cabinet Latch With Wing Knob Quarter Turn Version

List view Grid view
K0525 - Cabinet Latch With Wing Knob Quarter Turn Version

Tounge Not Supplied Please Order Separately. Part Number K0523

Material:
Housing and nut die-cast zinc.
Grip plastic PA6 GF 30.
Flat seal rubber.

Version:
Housing and nut chrome-plated.
Grip black.

Note:
Quarter-turn lock with wing grip. Right or left deployment. The lock can be installed pre-assembled. The fastening nut is an earthing nut with teeth one side.

Water and dust tight according to IP65.

The cylinder locks are supplied with 2 keys. The key can be removed in both positions (open and closed). All cylinders are identical i.e. all locks can be opened with the same key (Euro key 5333).

Please order the desired tongue type separately. Every tongue can be combined with every housing.

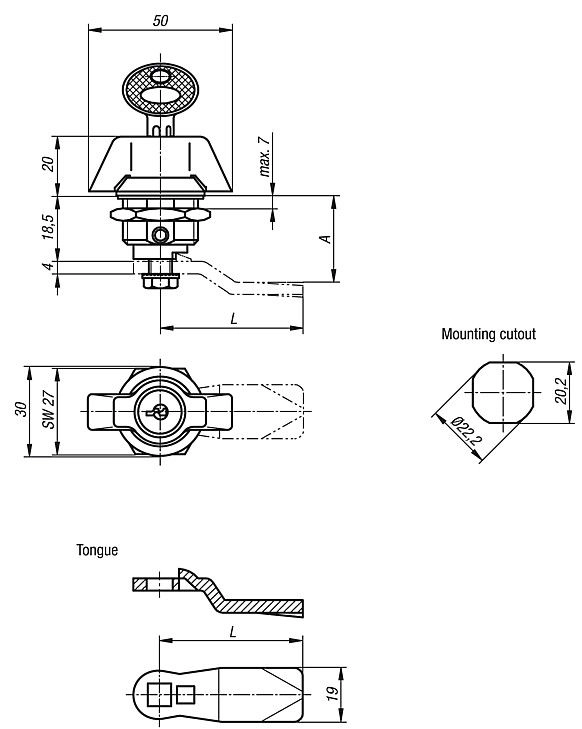

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.Accessory:Tongue for steel quarter-turn lock K0523.

Threaded Insert. Standard. M10 Internal Thread. M14x1.5 External Thread. Stainless Steel.

K0525 - Cabinet Latch With Wing Knob Quarter Turn Version

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm+

Choose Type

Hook

Latch

Vertical Latch

H

S max.

SW

Version

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0525.1183

View product

Quarter Turn Lock. Wing Grip. 18.5mm Height. Plastic & Zinc.

 18,5 7 27 Without Key £5.53 £6.64

0

Dispatched 02/08/25

{
