Tounge Not Supplied Please Order Separately. Part Number K0523
Material:
Housing, actuator, nut and key die-cast zinc.
Flat seal rubber.
Version:
Housing and actuator chrome-plated or black powder-coated.
Key chrome-plated.
Note:

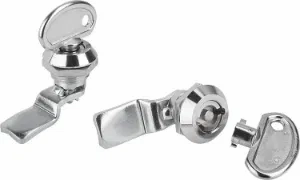

Security quarter turn lock with spring-loaded tongue. Right or left deployment. The lock can be installed pre-assembled. The fastening nut is an earthing nut with teeth one side.
Water and dust tight according to IP65.
Please order key separately. Lock can only be opened and closed with a specific key. The key can only be removed in the closed position. With an open lock the key acts as a grip.
Please order the desired tongue type separately. Every tongue can be combined with every housing.

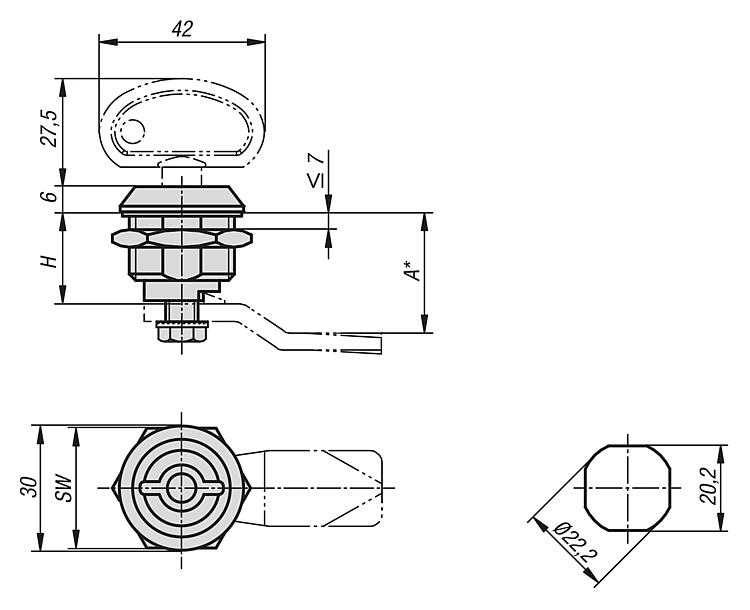

*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.
Accessory:
Tongue for steel quarter-turn lock K0523.

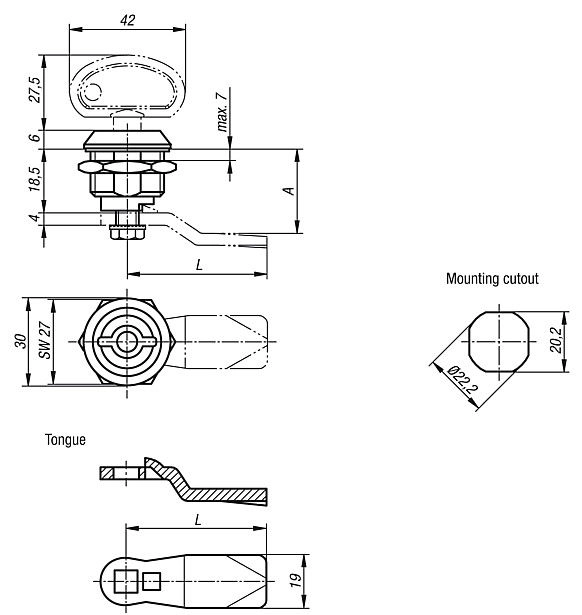

Drawing reference:
1) Key can be pulled out when locked
2) Key cannot be pulled out when open
{
