Item Code: K0520.131

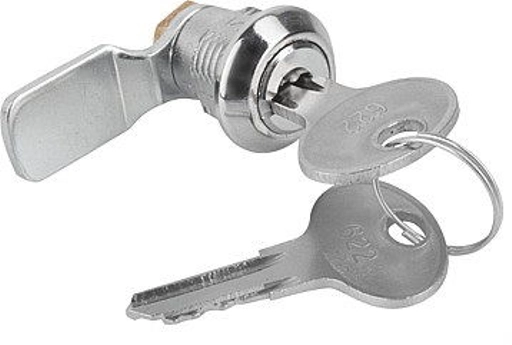

Quarter Turn Lock. Key Lock. 13mm Height. Zinc.

Item Code: K0520.131

Quarter Turn Lock. Key Lock. 13mm Height. Zinc.

Tongue Not Supplied. Please Order Separately

Material, surface finish:
Housing and actuator die cast zinc, chromium-plated.
Tongue in steel, galvanized.
Key nickel silver.

Note:
Small lockable compression latch, usable on the right or the left, with a 90° closing path. The compression latch can be installed pre-assembled. The fastening nut is constructed as an earthing nut with claws on one side.These lockable compression latches are each delivered with 2 keys. The key can be pulled out in both positions (open and closed). The locking is identical, i.e., each lock can be opened with the same key.

Please order the desired version of the tongue separately.

Quick Links

11 in stock

13
Quarter Turn Lock
5
20

£2.78  ea. Excl VAT £3.34  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
50 + £2.47 11%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Tongue Not Supplied. Please Order Separately

Material, surface finish:
Housing and actuator die cast zinc, chromium-plated.
Tongue in steel, galvanized.
Key nickel silver.

Note:
Small lockable compression latch, usable on the right or the left, with a 90° closing path. The compression latch can be installed pre-assembled. The fastening nut is constructed as an earthing nut with claws on one side.These lockable compression latches are each delivered with 2 keys. The key can be pulled out in both positions (open and closed). The locking is identical, i.e., each lock can be opened with the same key.

Please order the desired version of the tongue separately.

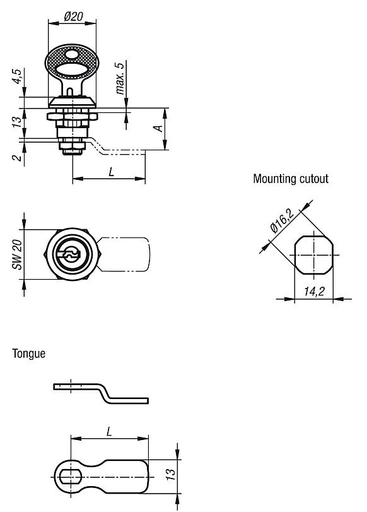

H13
ItemQuarter Turn Lock
S max.5
SW20
STP
MaterialDie Cast Zinc
ConnectionKey
Height13mm
Diameter20mm
