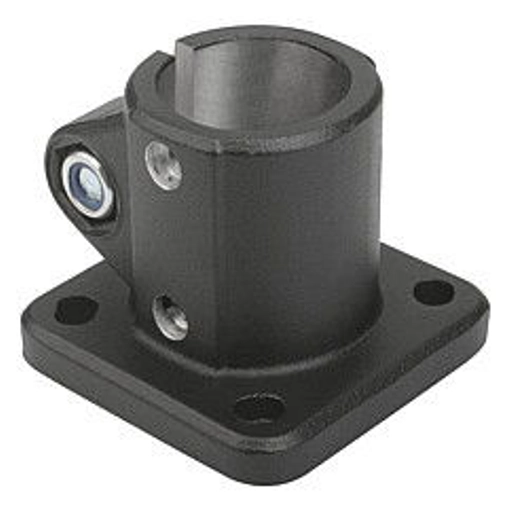

Tube Clamp With Foot For Linear Actuator. To Suit 40mm Round Tube. Aluminium.

Item Code: K0499.40

Tube Clamp With Foot For Linear Actuator. To Suit 40mm Round Tube. Aluminium.

Item Code: K0499.40

Tube Clamp With Foot For Linear Actuator. To Suit 40mm Round Tube. Aluminium.

Material, surface finish:
Cast aluminium, black powder-coated; socket head screw to DIN 7984 and hexagon nut to DIN 985 in galvanized steel Note:
* Oblong hole. On request:
Clamp levers for fixing.

Quick Links

Dispatch by 08/07/25

B: 90

C: 90

D: 8,5

hole arrangement: 1

L: 70

M1: 60

M2: 60

M3: 64

M4: 64

Type E: 40

V1: M10x30

£43.52 ea. Excl VAT £52.22 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£35.69	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Material, surface finish:
Cast aluminium, black powder-coated; socket head screw to DIN 7984 and hexagon nut to DIN 985 in galvanized steel Note:
* Oblong hole. On request:
Clamp levers for fixing.

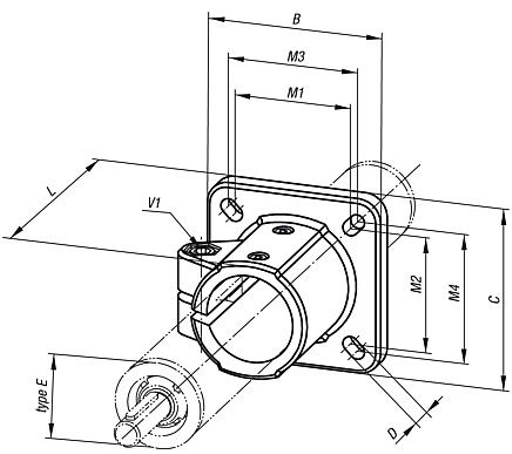

Product Dimensions

B	90
C	90
D	8,5
hole arrangement	1
L	70
M1	60
M2	60
M3	64
M4	64
Type E	40
V1	M10x30

Downloads

STP

Tube Clamp With Foot For Linear Actuator. To Suit 40mm Round Tube. Aluminium.

Tube Clamp With Foot For Linear Actuator. To Suit 40mm Round Tube. Aluminium.
