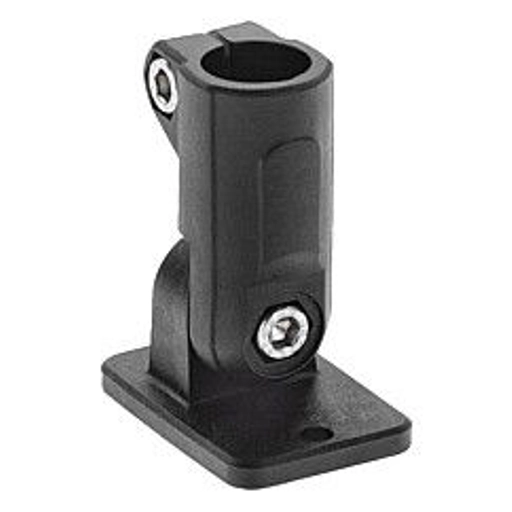

Joint Clamp With Swivel Foot. To Suit 18mm Round Tube. Plastic.

Item Code: K0490.18

Joint Clamp With Swivel Foot. To Suit 18mm Round Tube. Plastic.

Item Code: K0490.18

Joint Clamp With Swivel Foot. To Suit 18mm Round Tube. Plastic.

Material, surface finish:
Black thermoplastic; socket head screw to DIN 7984 and hexagon nut to DIN 985 in galvanized steel Note:
Joint clamps can be continuously shifted by 180°.
The basic size for round tubes is Ø18 mm or Ø30 mm. If smaller tubes are to be clamped or converted from round to square tubes, these can be adjusted to the required fitting by means of reducing bushes K0492. On request:
Clamp levers in plastic for fixing. Accessory:
- Reducing bushes K0492
- Round and square tubes K0493

Quick Links

Dispatch by 09/06/25

D: 25

L: 65

A: 18

B: 5,3 (2x)

H: 20

C: 30

G: 50

R: 34

S: M6x18

N: 5

E: 26,5

F: 40

P: 21

O: 35

£2.60 ea. Excl VAT £3.12 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£2.44	6%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

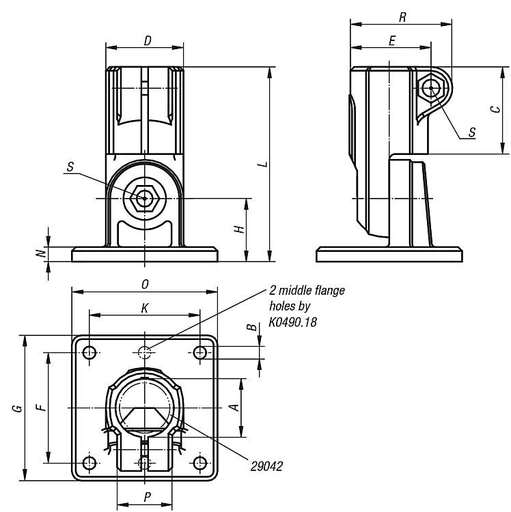

Product Dimensions

D	25
L	65
A	18
B	5,3 (2x)
H	20
C	30
G	50
R	34
S	M6x18
N	5
E	26,5
F	40
P	21
O	35

Downloads

STP

Joint Clamp With Swivel Foot. To Suit 18mm Round Tube. Plastic.

Joint Clamp With Swivel Foot. To Suit 18mm Round Tube. Plastic.
