Item Code: K0485.18

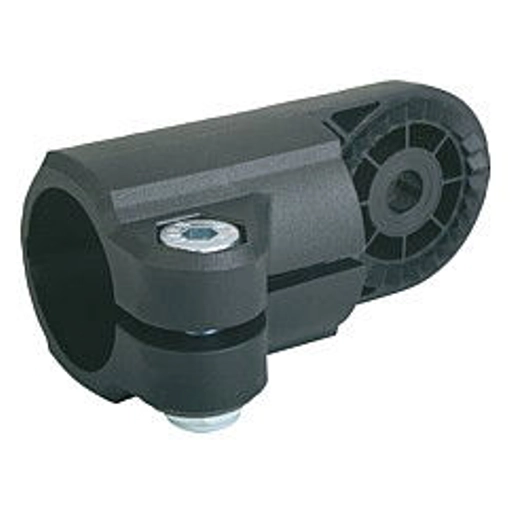

Tube Clamp Joint Block. External Teeth. To Suit 18mm Round Tube. Plastic.

Item Code: K0485.18

Tube Clamp Joint Block. External Teeth. To Suit 18mm Round Tube. Plastic.

Material, surface finish:
Black thermoplastic; socket head screw to DIN 7984 and hexagon nut to DIN 985 in galvanized steel Note:
Strap clamps with external toothing can be combined with strap clamps with internal toothing (K0484, K0486 or K0487) to make a joint clamp. The basic size for round tubes is Ø18 mm or Ø30 mm. If smaller tubes are to be clamped or converted from round to square tubes, these can be adjusted to the required fitting by means of reducing bushes K0492. On request:
Clamp levers in plastic for fixing. Accessory:
- Reducing bushes K0492
- Round and square tubes K0493

Quick Links

Dispatch by 08/07/25

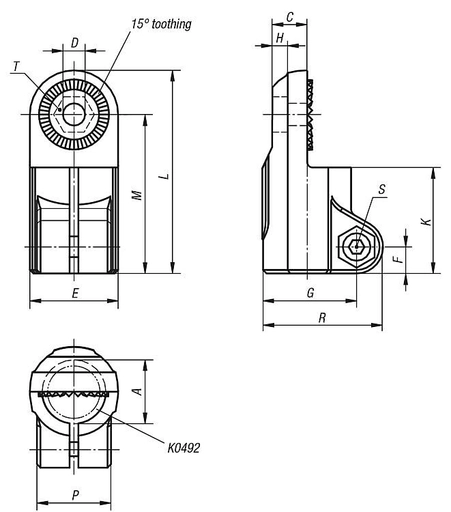

18
9,9
6,1
25
7,5
26,5
5,9
30
57,5
45
21
34
M6x18
M6-DIN 985

£2.25  ea. Excl VAT £2.70  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
50 + £1.93 14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material, surface finish:
Black thermoplastic; socket head screw to DIN 7984 and hexagon nut to DIN 985 in galvanized steel Note:
Strap clamps with external toothing can be combined with strap clamps with internal toothing (K0484, K0486 or K0487) to make a joint clamp. The basic size for round tubes is Ø18 mm or Ø30 mm. If smaller tubes are to be clamped or converted from round to square tubes, these can be adjusted to the required fitting by means of reducing bushes K0492. On request:
Clamp levers in plastic for fixing. Accessory:
- Reducing bushes K0492
- Round and square tubes K0493
A18
C9,9
D6,1
E25
F7,5
G26,5
H5,9
K30
L57,5
M45
P21
R34
SM6x18
TM6-DIN 985
