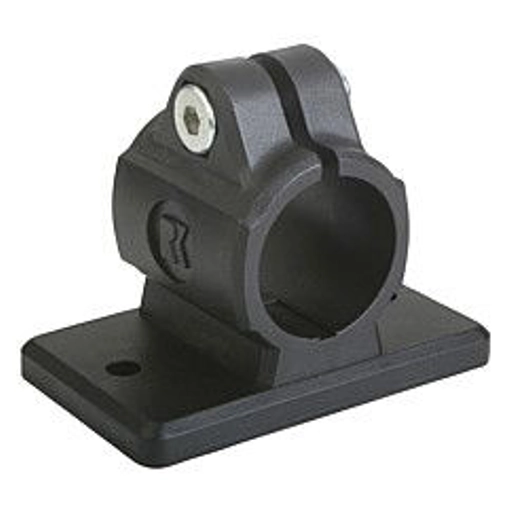

Tube Clamp With Flange. To Suit 30mm Round Tube. Plastic.

Item Code: K0479.30

Tube Clamp With Flange. To Suit 30mm Round Tube. Plastic.

29014_242x242.jpg?

29000Anwb_242x242.jpg?

Tube-Base-Clamps_1200x1200.jpg?

Item Code: K0479.30

Tube Clamp With Flange. To Suit 30mm Round Tube. Plastic.

Material, surface finish:
Black thermoplastic; socket head screw to DIN 7984 and hexagon nut to DIN 985 in galvanized steel Note:
The basic size for round tubes is Ø18 mm or Ø30 mm. If smaller tubes are to be clamped or converted from round to square tubes, these can be adjusted to the required fitting by means of reducing bushes K0492. On request:
Clamp levers in plastic for fixing. Accessory:
- Reducing bushes K0492
- Round and square tubes K0493

Quick Links

7 in stock

D: 40

L: 62,5

A: 30

B: 6,5

H: 60

C: 30

G: 50

S: M8x25

K: 51,5

N: 8

E: 45

F: 50

M: 80

P: 28,5

£5.26 ea. Excl VAT £6.31 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
25 +	£4.31	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material, surface finish:
Black thermoplastic; socket head screw to DIN 7984 and hexagon nut to DIN 985 in galvanized steel Note:
The basic size for round tubes is Ø18 mm or Ø30 mm. If smaller tubes are to be clamped or converted from round to square tubes, these can be adjusted to the required fitting by means of reducing bushes K0492. On request:
Clamp levers in plastic for fixing. Accessory:
- Reducing bushes K0492
- Round and square tubes K0493

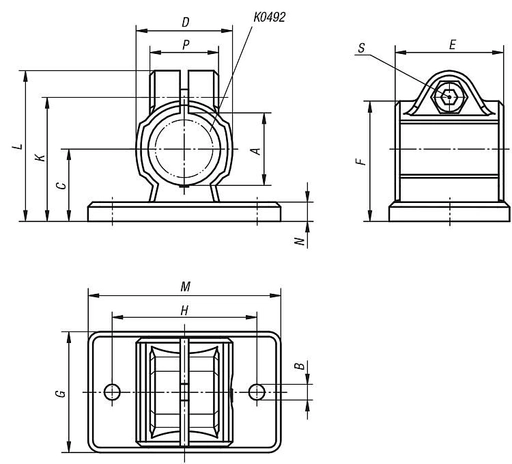

Product Dimensions

D	40
L	62,5
A	30
B	6,5
H	60
C	30
G	50
S	M8x25
K	51,5
N	8
E	45
F	50
M	80
P	28,5

Tube Style	Round
Tube Size	30mm
Material	Plastic
