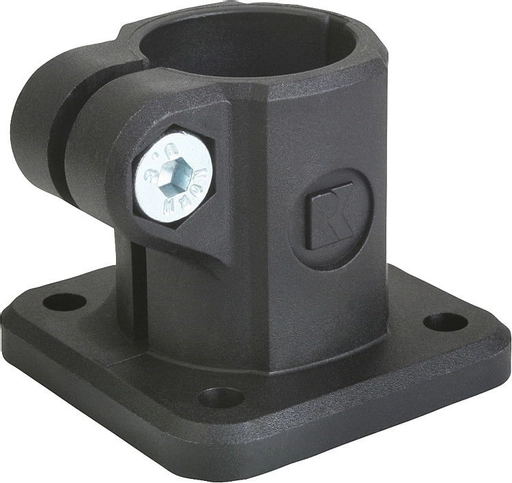

Tube Clamp With Foot. To Suit 30mm Round Tube. Plastic.

Item Code: K0477.30

Tube Clamp With Foot. To Suit 30mm Round Tube. Plastic.

Item Code: K0477.30

Tube Clamp With Foot. To Suit 30mm Round Tube. Plastic.

Plastic Base Clamp Suitable For Tube Ø30
Material, surface finish:
Black thermoplastic; socket head screw to DIN 7984 and hexagon nut to DIN 985 in galvanized steel Note:
The basic size for round tubes is Ø18 mm or Ø30 mm. If smaller tubes are to be clamped or converted from round to square tubes, these can be adjusted to the required fitting by means of reducing bushes K0492. On request:
Clamp levers in plastic for fixing. Accessory:
- Reducing bushes K0492
- Round and square tubes K0493

Quick Links

4 in stock

D: 42

L: 50

A: 30

B: 6,5

C: 41,5

G: 60

R: 39

S: M8x25

K: 40

N: 8

E: 52,5

P: 28,5

£4.76 ea. Excl VAT £5.71 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
30 +	£4.00	16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

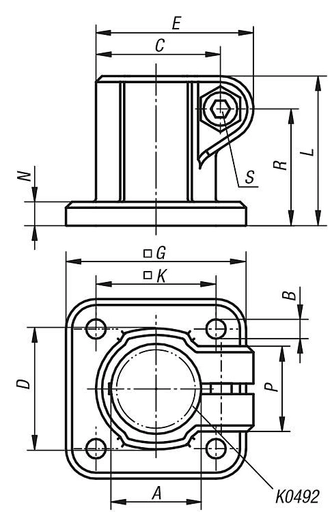

Product Dimensions

D	42
L	50
A	30
B	6,5
C	41,5
G	60
R	39
S	M8x25
K	40
N	8
E	52,5
P	28,5

Downloads

STP

Tube Clamp With Foot. To Suit 30mm Round Tube. Plastic.

Tube Clamp With Foot. To Suit 30mm Round Tube. Plastic.
