Item Code: K0445.1282215

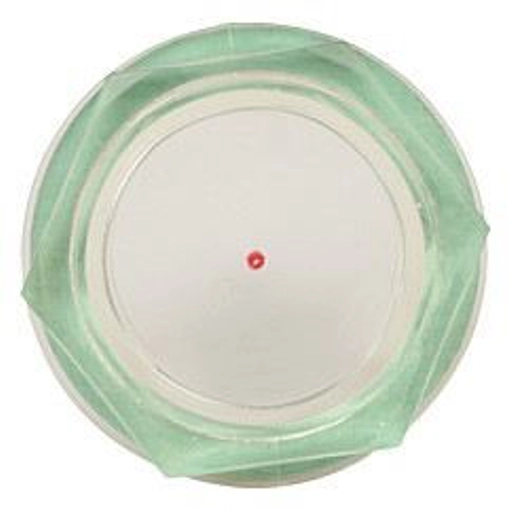

Oil Sight Level Glass. M22x1.5P Thread. WIthout Reflector. Plastic.

Item Code: K0445.1282215

Oil Sight Level Glass. M22x1.5P Thread. WIthout Reflector. Plastic.

Material:
Housing in thermoplastic polyamide.
Plastic reflector.
Version:
Housing, transparent, high mechanical stability, non-ageing, temperature resistant with oil up to 90 °C, resistant to solvents but not to alcohol or frost.
Flat seal, asbestos-free.
Reflector white.
Drawing reference:
Form A: without reflector
Form B: with reflector

Quick Links

23 in stock

A
28
7,5
12,5
M22X1,5
24
16
15

£1.25  ea. Excl VAT £1.50  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
50 + £1.07 14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Housing in thermoplastic polyamide.
Plastic reflector.
Version:
Housing, transparent, high mechanical stability, non-ageing, temperature resistant with oil up to 90 °C, resistant to solvents but not to alcohol or frost.
Flat seal, asbestos-free.
Reflector white.
Drawing reference:
Form A: without reflector
Form B: with reflector
FormA
D28
L7,5
L112,5
D1M22X1,5
SW24
D216
Tightening torque max. Nm15
STP
Thread/Connection SizeM22x1.5
MaterialPlastic
