Item Code: K0443.1076

Oil Level Gauge. Without Thermometer. 76mm Long. Plastic.

Item Code: K0443.1076

Oil Level Gauge. Without Thermometer. 76mm Long. Plastic.

Material, surface finish:
Housing in polyamide, transparent, high mechanical stability, non-ageing, temperature resistant with oil up to 100 °C, with water up to 70 °C;
O-ring and flat packing in rubber (NBR);
reflector in aluminium, painted white;
graduation and scale marks black;
screw, hexagon nut and washer in galvanized steel Note:

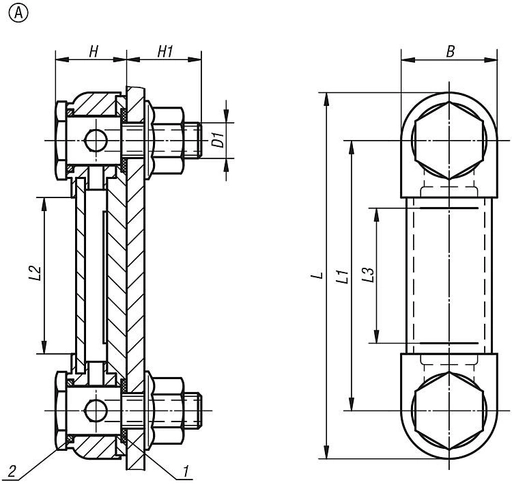

The Oil Level Gauges can either be fastened as shown in the illustration or directly in the threaded hole. Centre distance for the fastening holes = L1 ±0.5.

Quick Links

Dispatch by 10/06/25

A
103
76
37
M10
27
20
21
44

£10.55  ea. Excl VAT £12.66  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £9.71 8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material, surface finish:
Housing in polyamide, transparent, high mechanical stability, non-ageing, temperature resistant with oil up to 100 °C, with water up to 70 °C;
O-ring and flat packing in rubber (NBR);
reflector in aluminium, painted white;
graduation and scale marks black;
screw, hexagon nut and washer in galvanized steel Note:
The Oil Level Gauges can either be fastened as shown in the illustration or directly in the threaded hole. Centre distance for the fastening holes = L1 ±0.5.
FormA
L103
L176
L337
D1M10
B27
H20
H121
L244
STP
