Hinge With Detent. Plastic & Steel. 54x56mm. 6mm Guide Tabs.

Item Code: K0439.56181806

Hinge With Detent. Plastic & Steel. 54x56mm. 6mm Guide Tabs.

Item Code: K0439.56181806

Hinge With Detent. Plastic & Steel. 54x56mm. 6mm Guide Tabs.

Material:
Hinge and coverings, glass-fibre reinforced thermoplastic PA;
axle in stainless steel Surface finish:
Hinge and coverings black;
axle natural finish Note:
The hinges are equipped with a catching function. It catches in four positions and keeps doors and covers open and tightly closed. The hinges are available with or without guide tabs for aluminium profiles.

Quick Links

Dispatch by 11/06/25

A: 54

B: 56

A1: 17,75

A2: 17,75

A3: 27

A4: 27

F1 N: 400

F2 N: 350

Guide tabs for slot: 6

Max. torque Nm: 2

£11.39 ea. Excl VAT £13.67 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£10.48	8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

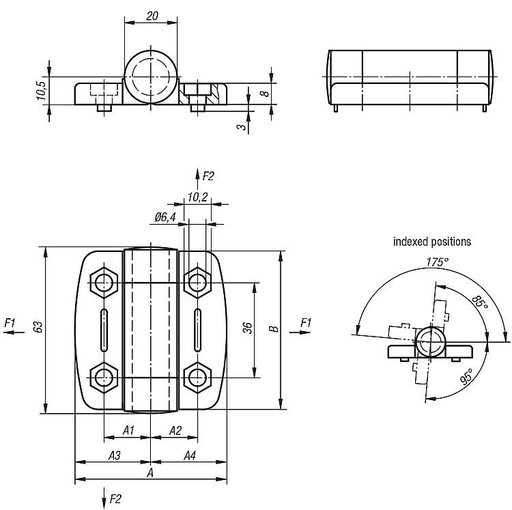

Product Dimensions

A	54
B	56
A1	17,75
A2	17,75
A3	27
A4	27
F1 N	400
F2 N	350
Guide tabs for slot	6
Max. torque Nm	2

Downloads

STP

Hinge With Detent. Plastic & Steel. 54x56mm. 6mm Guide Tabs.

Hinge With Detent. Plastic & Steel. 54x56mm. 6mm Guide Tabs.
