Swivel Feet With Interchangeable Spindles & Pads 8° Angle
Back to K0427 Spindles For Swivel Feet In Steel & Stainless Steel M12-M20

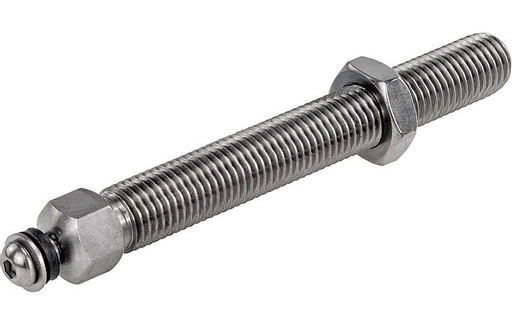

Thread Spindle For Levelling Feet. M12 Thread Size. 66mm Thread Length. Steel.

Item Code: K0427.120661

Thread Spindle For Levelling Feet. M12 Thread Size. 66mm Thread Length. Steel.

Item Code: K0427.120661

Thread Spindle For Levelling Feet. M12 Thread Size. 66mm Thread Length. Steel.

Material:
Steel or stainless steel 1.4305 Surface finish:
Steel blue chromated; stainless steel, natural finish Note:
Swivel Feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.
The height of the complete Swivel Foot is calculated from the length of the threaded spindle + 30 mm.
(total height of Swivel Foot = L + 30 mm) Ordering example:
If the Threaded Spindle and the swivel foot plate are to be supplied assembled, please add the suffix "assembled" to the order number for the spindle and plate.
(e.g. 27828-120661 and 27815-1060 assembled.)

Quick Links

14 in stock

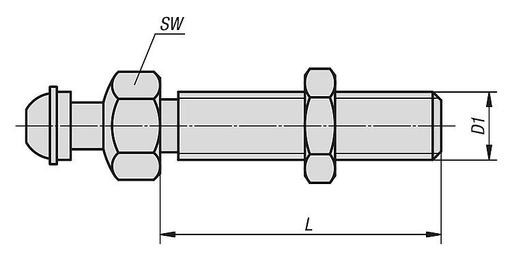

L: 66

D1: M12

SW: 22

Load rating , max. kN: 7,7

£5.44 ea. Excl VAT £6.53 ea. Inc VAT
