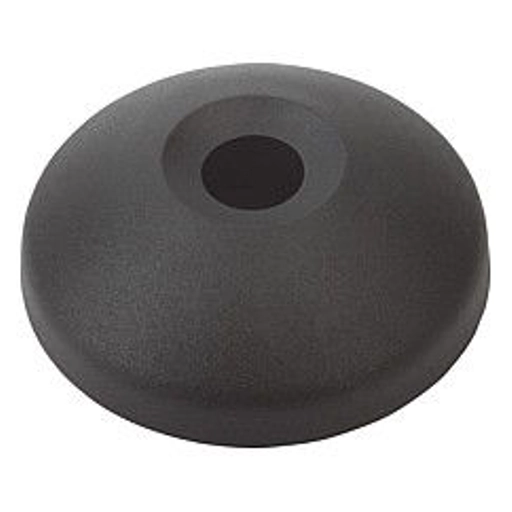

Swivel Plate. 80mm Diameter. Anti-Slip Plate. Compatible With Spindle K0427.

Item Code: K0423.2080

Swivel Plate. 80mm Diameter. Anti-Slip Plate. Compatible With Spindle K0427.

Item Code: K0423.2080

Swivel Plate. 80mm Diameter. Anti-Slip Plate. Compatible With Spindle K0427.

Material:
Plates, thermoplastic, glass-fibre reinforced.
Anti-slip-plate in thermoplastic elastomer Surface finish:
Black Note:
Swivel Feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.
The Anti-Slip-Plate absorbs vibrations and prevents slipping of the Swivel Foot
. For matching threaded spindles see 27828. Ordering example:
If the Swivel Foot plate and the threaded spindle are to be supplied assembled, please add the suffix "assembled" to the order number for the plate and spindle.
(e.g. 27815-1060 and 27828-120661 assembled.

Quick Links

16 in stock

D: 80

Form: B

H: 20

Load rating max. kN: 12

Was £3.93 Save 30% £2.75 ea. Excl VAT Was £4.72 Save 30% £3.30 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
30 +	£2.53	8%

Free Standard Delivery over £15 ex VAT

Spend another £15 to qualify

modal placeholder

Quick Links

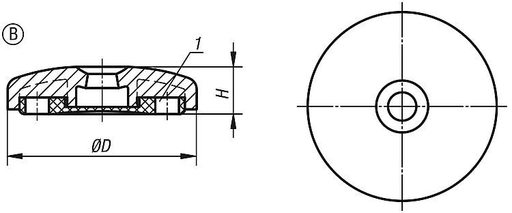

Product Dimensions

D	80
Form	B
H	20
Load rating max. kN	12

CAD Download
