Item Code: K0422.061

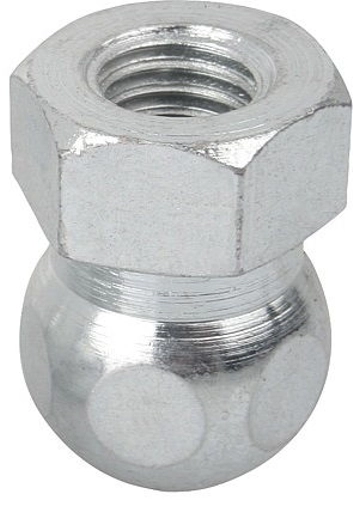

Ball Joint. M6 Thread Size. Steel. Compatible With Spindle K0421.

Item Code: K0422.061

Ball Joint. M6 Thread Size. Steel. Compatible With Spindle K0421.

Material:
Steel or stainless steel 1.4301. Surface finish:
Steel blue chromated; stainless steel, natural finish Note:

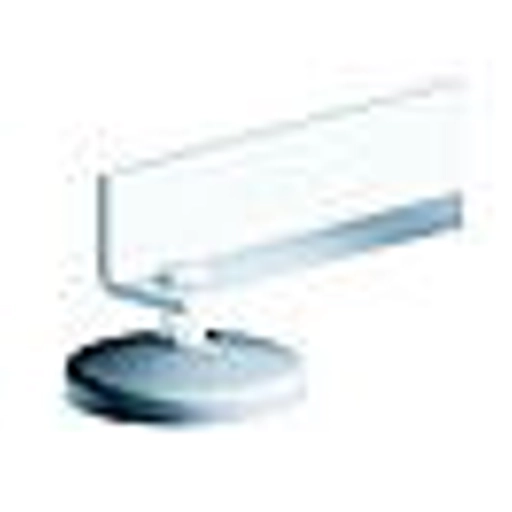

For direct fastening of swivel pads by standard screws. Swivel Pads consist of a ball joint and a plate. Any ball joint can be combined with any plate.

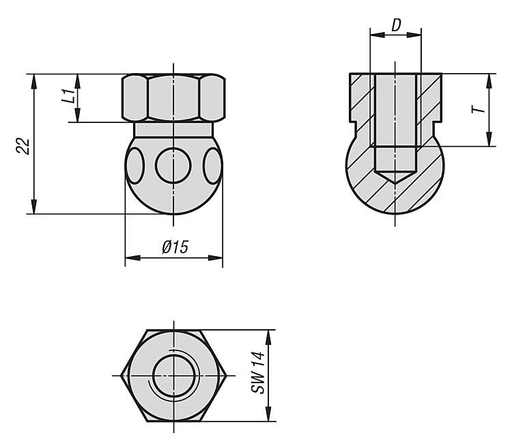

The height of the complete Swivel Pad is calculated from the height of hexagon + 22,5 mm.
(Overall height of Swivel Pad = L1 + 22,5 mm) Ordering example:
If the Ball Joint and the Swivel Pad plate are to be supplied assembled, please add the suffix "assembled" to the order number for the ball joint and plate.
(e.g. 27811-061 and 27800-1030 assembled.)

Quick Links

Dispatch by 10/06/25

M6
7,5
10

£1.90  ea. Excl VAT £2.28  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
50 + £1.79 6%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Steel or stainless steel 1.4301. Surface finish:
Steel blue chromated; stainless steel, natural finish Note:
For direct fastening of swivel pads by standard screws. Swivel Pads consist of a ball joint and a plate. Any ball joint can be combined with any plate.
The height of the complete Swivel Pad is calculated from the height of hexagon + 22,5 mm.
(Overall height of Swivel Pad = L1 + 22,5 mm) Ordering example:
If the Ball Joint and the Swivel Pad plate are to be supplied assembled, please add the suffix "assembled" to the order number for the ball joint and plate.
(e.g. 27811-061 and 27800-1030 assembled.)
DM6
L17,5
T10
STP
MaterialSteel
Thread SizeM6
