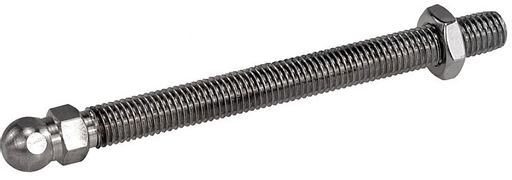

Threaded Spindle for Swivel Plate. M6 Thread Size. 30mm Thread Length. Steel.

Item Code: K0421.060301

Threaded Spindle for Swivel Plate. M6 Thread Size. 30mm Thread Length. Steel.

Item Code: K0421.060301

Threaded Spindle for Swivel Plate. M6 Thread Size. 30mm Thread Length. Steel.

Material:
Steel or stainless steel 1.4301 Surface finish:
Steel blue chromated; stainless steel, natural finish Note:
Swivel Pads consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.
The height of the complete Swivel Pad is calculated from the length of the threaded spindle + height of hexagon + 22,5 mm.
(Overall height of Swivel Pad = L + L1 + 22,5 mm) Ordering example:
If the Threaded Spindle and the swivel pad plate are to be supplied assembled, please add the suffix "assembled" to the order number for the spindle and plate.
(e.g. 27810-060151 and 27800-1030 assembled.)

Quick Links

14 in stock

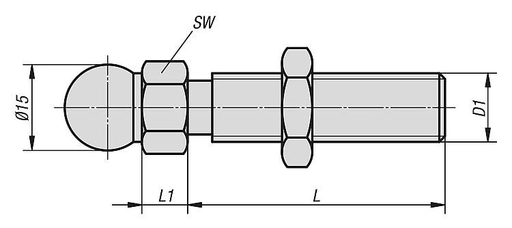

D1: M6

L: 30

L1: 7,5

L3: 28

Load rating , max. kN: 2

SW: 14

£2.25 ea. Excl VAT £2.70 ea. Inc VAT
