Item Code: K0419.20402

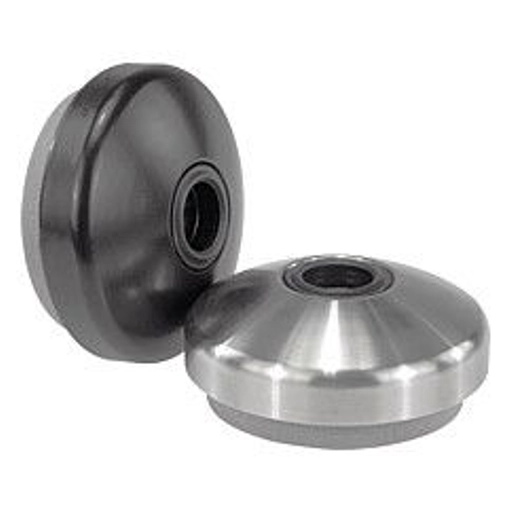

Swivel Plate. 40mm Diameter. Compatible With Spindle K0421. Stainless Steel.

Item Code: K0419.20402

Swivel Plate. 40mm Diameter. Compatible With Spindle K0421. Stainless Steel.

Material:
Plate in die cast zinc or stainless steel 1.4305,
damper plate PUR elastomere (Sylomer V12) Surface finish:
Plate in die cast zinc, black powder-coated; plate in stainless steel, natural finish; damper plate grey, fixed, cannot slip; range of use from -30 °C to +70 °C Note:
The manageable load given in the table is a recommendation of the permanent static load up to which the absorption unit should be used.
This static load corresponds to a pressure per area of 0.4 N/mm², at which the material reaches its optimum absorption properties. Here it is taken into account that under dynamic demands an additional load, up to 0.6 N/mm² may occur.
The damper plate absorbs vibrations and prevents slipping of the Swivel Pad. Swivel Pads consist of a plate and a threaded spindle resp. a ball joint. Any plate can be combined with any threaded spindle resp. any ball joint.
For matching threaded spindles see 27810.
For matching ball joints see 27811. Ordering example:
If the Swivel Pad plate and the threaded spindle resp. the ball joint are to be supplied assembled, please add the suffix "assembled" to the order number for the plate and the spindle resp. the ball joint.
(e.g. 27804-20601 and 27810-060151 assembled.)

Quick Links

Dispatch by 10/06/25

40
30,5
25
7 / 5,8 / 4,9
0,212

£18.82  ea. Excl VAT £22.58  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £17.31 8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Plate in die cast zinc or stainless steel 1.4305,
damper plate PUR elastomere (Sylomer V12) Surface finish:
Plate in die cast zinc, black powder-coated; plate in stainless steel, natural finish; damper plate grey, fixed, cannot slip; range of use from -30 °C to +70 °C Note:
The manageable load given in the table is a recommendation of the permanent static load up to which the absorption unit should be used.
This static load corresponds to a pressure per area of 0.4 N/mm², at which the material reaches its optimum absorption properties. Here it is taken into account that under dynamic demands an additional load, up to 0.6 N/mm² may occur.
The damper plate absorbs vibrations and prevents slipping of the Swivel Pad. Swivel Pads consist of a plate and a threaded spindle resp. a ball joint. Any plate can be combined with any threaded spindle resp. any ball joint.
For matching threaded spindles see 27810.
For matching ball joints see 27811. Ordering example:
If the Swivel Pad plate and the threaded spindle resp. the ball joint are to be supplied assembled, please add the suffix "assembled" to the order number for the plate and the spindle resp. the ball joint.
(e.g. 27804-20601 and 27810-060151 assembled.)

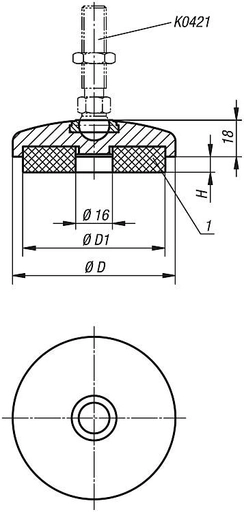

D40
D130,5
H25
H1 by 0 / 0.4 / 0.6 N/mm²7 / 5,8 / 4,9
Load rating , max. kN0,212
STP
MaterialStainless Steel
Plate Diameter40mm
