Item Code: K0418.1080

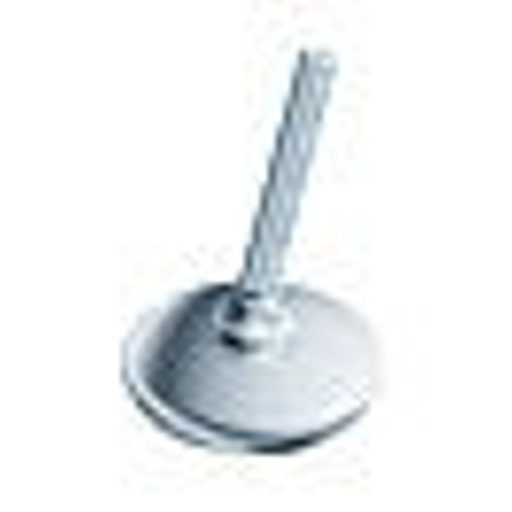

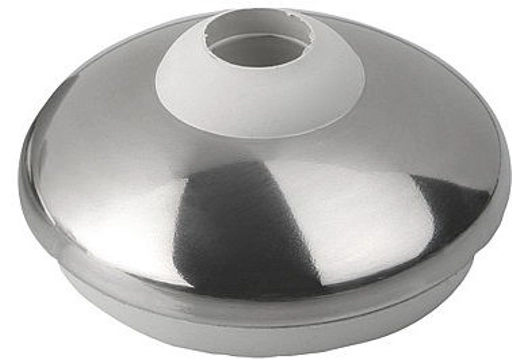

Swivel Plate. 78.5mm Diameter. Anti-Slip Base. Compatible With Spindle K0421. Stainless Steel.

Item Code: K0418.1080

Swivel Plate. 78.5mm Diameter. Anti-Slip Base. Compatible With Spindle K0421. Stainless Steel.

Material: Plates, stain
less steel 1.4301.
Core, thermoplastic PA.
Rubber support TPE. Surface finish:
Plate natural finish;
light grey rubber support with sealing lip, hardness 70 Shore A;
range of use from -20 °C to +100 °C Note:
The stainless steel plates excel in that the rubber support combined with the stainless steel plates and the PA core is sprayed. The rubber support is resistant to oil and water (up to 60 °C). In addition, it is furnished with antibacterial and antimicrobial protection and is thus outstandingly suited for sectors in the foods industry. Swivel Pads consist of a plate and a threaded spindle resp. a ball joint. Any plate can be combined with any threaded spindle resp. any ball joint.
For matching threaded spindles see 27810.
For matching ball joints see 27811. Ordering example:
If the Swivel Pad plate and the threaded spindle resp. the ball joint are to be supplied assembled, please add the suffix "assembled" to the order number for the plate and the spindle resp. the ball joint.
(e.g. 27803-1060 and 27810-060152 assembled.)

Quick Links

10 in stock

78,5
29
7

£10.49  ea. Excl VAT £12.59  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £9.65 8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material: Plates, stain
less steel 1.4301.
Core, thermoplastic PA.
Rubber support TPE. Surface finish:
Plate natural finish;
light grey rubber support with sealing lip, hardness 70 Shore A;
range of use from -20 °C to +100 °C Note:
The stainless steel plates excel in that the rubber support combined with the stainless steel plates and the PA core is sprayed. The rubber support is resistant to oil and water (up to 60 °C). In addition, it is furnished with antibacterial and antimicrobial protection and is thus outstandingly suited for sectors in the foods industry. Swivel Pads consist of a plate and a threaded spindle resp. a ball joint. Any plate can be combined with any threaded spindle resp. any ball joint.
For matching threaded spindles see 27810.
For matching ball joints see 27811. Ordering example:
If the Swivel Pad plate and the threaded spindle resp. the ball joint are to be supplied assembled, please add the suffix "assembled" to the order number for the plate and the spindle resp. the ball joint.
(e.g. 27803-1060 and 27810-060152 assembled.)

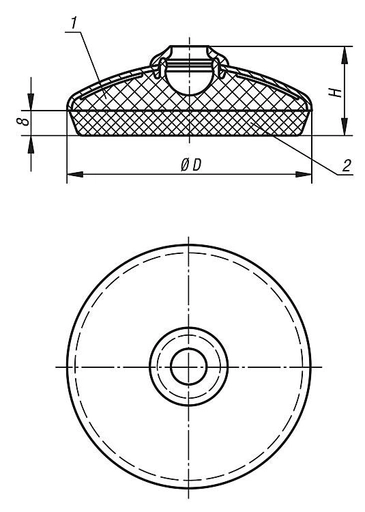

D78,5
H29
Load rating , max. kN7
STP
MaterialStainless Steel
Plate Diameter78.5mm
