Item Code: K0415.1030

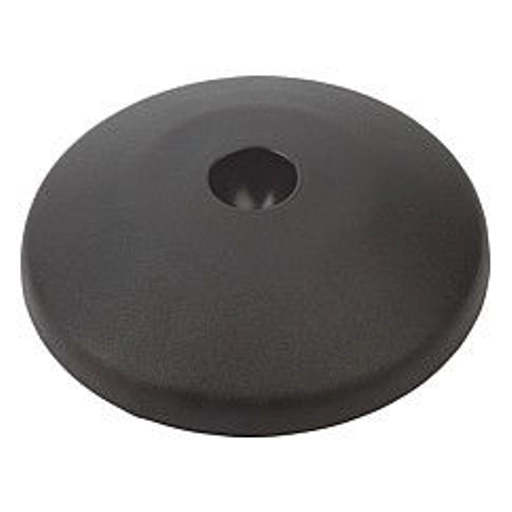

Swivel Plate. 30mm Diameter. Compatible With Spindle K0421.

Item Code: K0415.1030

Swivel Plate. 30mm Diameter. Compatible With Spindle K0421.

Material:
Plates, thermoplastic, glass-fibre reinforced. Surface finish:
Black. Note for ordering:
If the swivel pad plate and the threaded spindle resp. the ball joint are to be supplied assembled, please add the suffix "assembled" to the order number for the plate and the spindle resp. the ball joint.
(e.g. K0415.1030 and K0421.060151 "assembled".) Note:
Swivel pads consist of a plate and a threaded spindle or a ball-head. Each plate can be combined with each threaded spindle or with each ball-head. For matching threaded spindles see K0421. For suitable ball heads see K0422.

Quick Links

10 in stock

29
A
18
5
30

£1.76  ea. Excl VAT £2.11  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
50 + £1.51 14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Plates, thermoplastic, glass-fibre reinforced. Surface finish:
Black. Note for ordering:
If the swivel pad plate and the threaded spindle resp. the ball joint are to be supplied assembled, please add the suffix "assembled" to the order number for the plate and the spindle resp. the ball joint.
(e.g. K0415.1030 and K0421.060151 "assembled".) Note:
Swivel pads consist of a plate and a threaded spindle or a ball-head. Each plate can be combined with each threaded spindle or with each ball-head. For matching threaded spindles see K0421. For suitable ball heads see K0422.

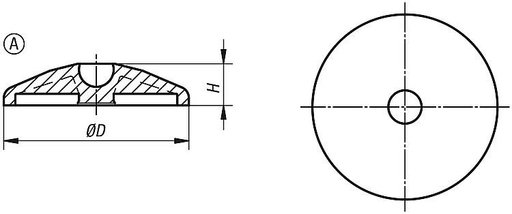

D29
FormA
H18
Load rating max. kN5
Size30
STP
MaterialPlastic
Plate Diameter30mm
