K0398 Threaded Inserts In Stainless Steel Size M5-M12

K0398 Threaded Inserts In Stainless Steel Size M5-M12

List view Grid view

Material:
Threaded insert in stainless steel.

Version:
Passivated.

Note:
Threaded inserts allow threaded holes which have been damaged, torn out or jammed to be used again or to be repaired, enabling expensive products to be saved from the scrap heap.

Threaded inserts are suitable for use in various materials, including light metals and castings.

Inserts with internal threads larger than M6 are supplied with four locking pins instead of two.

Permissible deviations:
The medium tolerance class applies to the threads listed, i.e. 6H for nut threads and 6g for bolt threads.
Other dimensions ±0.25 mm.

Technical information see operating instructions for threaded inserts.Advantages:- Quick and easy installation.
- The insert is fixed with pins in order to prevent torsion due to twisting or vibrations.
- No other special tools are required besides the assembly tool.

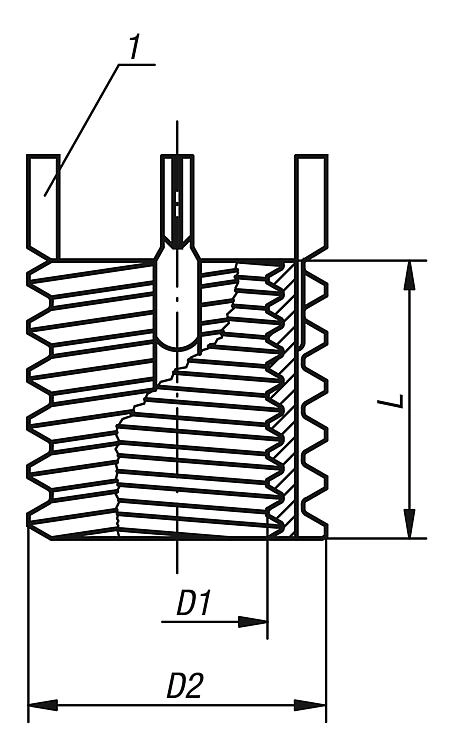

Threaded Insert. Standard. M10 Internal Thread. M14x1.5 External Thread. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Sort by

	D1 internal thread	D2 external thread	Core drill Ø	Tap size	Min. thread depth	Counter- sink Ø +0.25	L length	Removal , drill , Ø	Removal drilling depth	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0398.105 View product Threaded Insert. Standard. M5 Internal Thread. M8 External Thread. Stainless Steel.	M5	M8	6,9	M8	9,5	8,3	8	5,5	4	£9.23 £11.08		0 Dispatched 23/06/25

	D1 internal thread	D2 external thread	Core drill Ø	Tap size	Min. thread depth	Counter- sink Ø +0.25	L length	Removal , drill , Ø	Removal drilling depth	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0398.106 View product Threaded Insert. Standard. M6 Internal Thread. M10x1.25 External Thread. Stainless Steel.	M6	M10x1,25	8,8	M10x1,25	11,5	10,3	10	7,5	4,8	£9.00 £10.80		0 Dispatched 23/06/25

	D1 internal thread	D2 external thread	Core drill Ø	Tap size	Min. thread depth	Counter- sink Ø +0.25	L length	Removal , drill , Ø	Removal drilling depth	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0398.108 View product Threaded Insert. Standard. M8 Internal Thread. M12x1.25 External Thread. Stainless Steel.	M8	M12x1,25	10,8	M12x1,25	13,5	12,3	12	9,5	4,8	£9.49 £11.39		0 Dispatched 23/06/25

	D1 internal thread	D2 external thread	Core drill Ø	Tap size	Min. thread depth	Counter- sink Ø +0.25	L length	Removal , drill , Ø	Removal drilling depth	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0398.108X1 View product Threaded Insert. Standard. M8x1 Internal Thread. M12x1.25 External Thread. Stainless Steel.	M8X1	M12x1,25	10,8	M12x1,25	13,5	12,3	12	9,5	4,8	£9.49 £11.39		0 Dispatched 23/06/25

	D1 internal thread	D2 external thread	Core drill Ø	Tap size	Min. thread depth	Counter- sink Ø +0.25	L length	Removal , drill , Ø	Removal drilling depth	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0398.110 View product Threaded Insert. Standard. M10 Internal Thread. M14x1.5 External Thread. Stainless Steel.	M10	M14X1,5	12,8	M14X1,5	15,5	14,3	14	11,5	4,8	£10.85 £13.02		0 Dispatched 23/06/25

	D1 internal thread	D2 external thread	Core drill Ø	Tap size	Min. thread depth	Counter- sink Ø +0.25	L length	Removal , drill , Ø	Removal drilling depth	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0398.110X125 View product Threaded Insert. Standard. M10x1.25 Internal Thread. M14x1.5 External Thread. Stainless Steel.	M10x1,25	M14X1,5	12,8	M14X1,5	15,5	14,3	14	11,5	4,8	£10.85 £13.02		0 Dispatched 23/06/25

	D1 internal thread	D2 external thread	Core drill Ø	Tap size	Min. thread depth	Counter- sink Ø +0.25	L length	Removal , drill , Ø	Removal drilling depth	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0398.112 View product Threaded Insert. Standard. M12 Internal Thread. M16x1.5 External Thread. Stainless Steel.	M12	M16x1,5	14,8	M16x1,5	17,5	16,3	16	13,5	4,8	£13.81 £16.57		0 Dispatched 23/06/25

	D1 internal thread	D2 external thread	Core drill Ø	Tap size	Min. thread depth	Counter- sink Ø +0.25	L length	Removal , drill , Ø	Removal drilling depth	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS												Basket
K0398.112X125 View product Threaded Insert. Standard. M12x1.25 Internal Thread. M16x1.5 External Thread. Stainless Steel.	M12x1,25	M16x1,5	14,8	M16x1,5	17,5	16,3	16	13,5	4,8	£13.81 £16.57		0 Dispatched 23/06/25

Showing products per page

K0398 Threaded Inserts In Stainless Steel Size M5-M12

Threaded Insert. Standard. M5 Internal Thread. M8 External Thread. Stainless Steel.

Threaded Insert. Standard. M6 Internal Thread. M10x1.25 External Thread. Stainless Steel.

Threaded Insert. Standard. M8 Internal Thread. M12x1.25 External Thread. Stainless Steel.

Threaded Insert. Standard. M8x1 Internal Thread. M12x1.25 External Thread. Stainless Steel.

Threaded Insert. Standard. M10 Internal Thread. M14x1.5 External Thread. Stainless Steel.

Threaded Insert. Standard. M10x1.25 Internal Thread. M14x1.5 External Thread. Stainless Steel.

Threaded Insert. Standard. M12 Internal Thread. M16x1.5 External Thread. Stainless Steel.

Threaded Insert. Standard. M12x1.25 Internal Thread. M16x1.5 External Thread. Stainless Steel.
