K0395 - Swivel Feet In Steel Stainless Steel & POM Size M6-M20
Back to K0395 Swivel Feet In Steel & POM Form C Size M6-M20

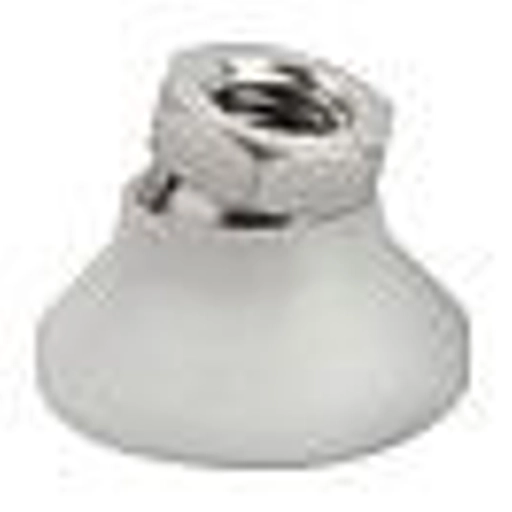

Swivel Foot. M6 Thread. 20mm Base Diameter. Plastic & Steel.

Item Code: K0395.506

Swivel Foot. M6 Thread. 20mm Base Diameter. Plastic & Steel.

Item Code: K0395.506

Swivel Foot. M6 Thread. 20mm Base Diameter. Plastic & Steel.

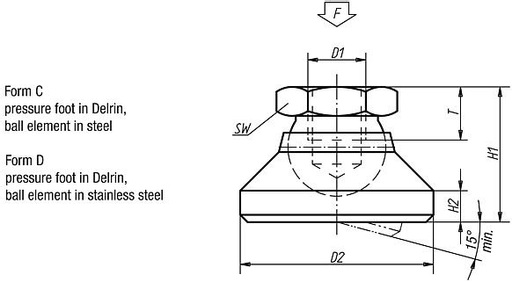

Material, surface finish:
Form A, G: Pressure foot in tempered steel, ball element in case-hardened free-cutting steel; black oxide finish
Form B: Stainless steel, natural finish
Form C: Pressure foot in white delrin; ball element in case-hardened free-cutting steel, black oxide finish
Form D: Pressure foot in white delrin; ball element in stainless steel, natural finish Anti-slip-plate in thermoplastic elastomer Note:
The Anti-Slip-Plate absorbs vibrations and prevents slipping of the Swivel Foot.

Quick Links

Dispatch by 04/07/25

D: 20

D1: M6

Form: C

H: 15

H2: 2,5

Load rating max. kN: 4

SW: 10

T: 8,5

£10.70 ea. Excl VAT £12.84 ea. Inc VAT
