Item Code: K0384.20410

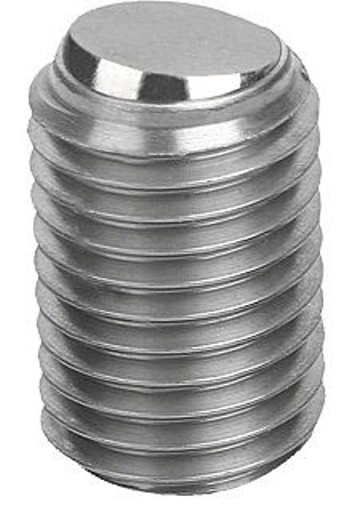

BALL-END THRUST SCREW WITHOUT HEAD, FORM:B FLATTENED BALL, M04, L=9,8, STAINLESS STEEL BRIGHT, COMP:STAINLESS

Item Code: K0384.20410

BALL-END THRUST SCREW WITHOUT HEAD, FORM:B FLATTENED BALL, M04, L=9,8, STAINLESS STEEL BRIGHT, COMP:STAINLESS

Material, surface finish:
Screw and ball in stainless steel, natural finish. Note:
Surfaces which are not plane and parallel can be firmly clamped or supported with with flattened ball because the movable ball can adapt itself up to 9°.
Further lengths have been designed especially so that ball pressure screws can be glued up. They allow mechanical connecting elements with external thread to be made cost-effectively for small and medium-sized series.

Quick Links

Dispatch by 09/06/25

B
M4
9,8
1,4
2
2,5
3,5

£5.79  ea. Excl VAT £6.95  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
25 + £4.75 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material, surface finish:
Screw and ball in stainless steel, natural finish. Note:
Surfaces which are not plane and parallel can be firmly clamped or supported with with flattened ball because the movable ball can adapt itself up to 9°.
Further lengths have been designed especially so that ball pressure screws can be glued up. They allow mechanical connecting elements with external thread to be made cost-effectively for small and medium-sized series.

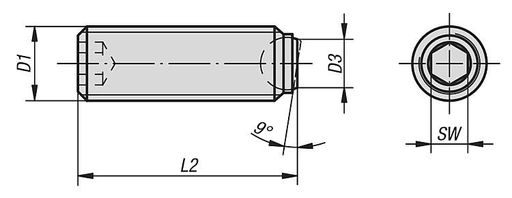

FormB
DM4
L9,8
D11,4
SW2
DK2,5
Load rating max. kN (static load only)3,5
