Back to K0384 Ball Pressure Screws In Stainless Steel Full Ball Size M4-M16
K0384 Ball Pressure Screws Form D Ball In POM Size M4-M8

K0384 Ball Pressure Screws Form D Ball In POM Size M4-M8

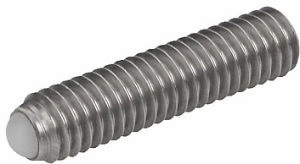

BALL-END THRUST SCREW WITHOUT HEAD, FORM:D BALL POM, M05, L=25, STAINLESS STEEL BRIGHT, COMP:POLYACETAL

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

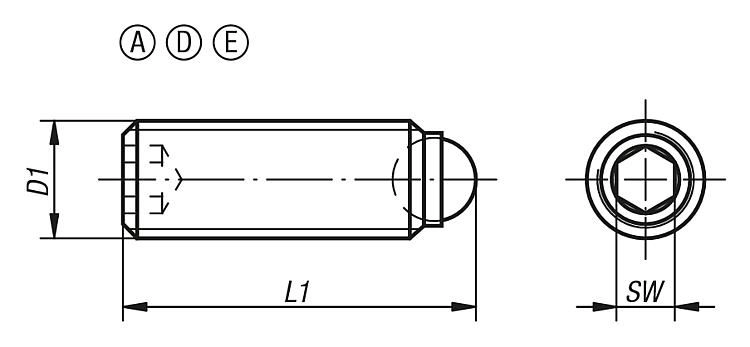

	D	DK	Form	L	Load rating max. kN (static load only)	SW	Price (Exc. Tax)	Stock
Filters
K0384.30410 View product	M4	2,5	D	10	0,3	2	£3.95	0
K0384.30412 View product	M4	2,5	D	12	0,3	2	£3.95	0
K0384.30416 View product	M4	2,5	D	16	0,3	2	£4.04	0
K0384.3046 View product	M4	2,5	D	6	0,3	2	£3.95	0
K0384.3048 View product	M4	2,5	D	8	0,3	2	£3.95	41
K0384.30510 View product	M5	3	D	10	0,5	2,5	£3.62	0
K0384.30512 View product	M5	3	D	12	0,5	2,5	£3.62	0
K0384.30516 View product	M5	3	D	16	0,5	2,5	£3.68	0
K0384.30520 View product	M5	3	D	20	0,5	2,5	£3.68	0
K0384.30525 View product	M5	3	D	25	0,5	2,5	£3.68	0
K0384.3058 View product	M5	3	D	8	0,5	2,5	£3.62	29
K0384.30610 View product	M6	4	D	10,8	0,9	3	£3.93	0
K0384.30612 View product	M6	4	D	12,8	0,9	3	£3.95	0
K0384.30616 View product	M6	4	D	16,8	0,9	3	£3.95	0
K0384.30620 View product	M6	4	D	20,8	0,9	3	£3.95	0
K0384.30625 View product	M6	4	D	25,8	0,9	3	£4.04	0
K0384.30810 View product	M8	5,5	D	11,2	1,5	4	£4.33	0
K0384.30812 View product	M8	5,5	D	13,2	1,5	4	£4.42	0
K0384.30816 View product	M8	5,5	D	17,2	1,5	4	£4.42	0
K0384.30820 View product	M8	5,5	D	21,2	1,5	4	£4.46	0
K0384.30825 View product	M8	5,5	D	26,2	1,5	4	£4.46	3
K0384.30830 View product	M8	5,5	D	31,2	1,5	4	£4.51	0
