K0384 Ball Pressure Screws Form A Ball In Stainless Steel Size M4-M16

K0384 Ball Pressure Screws Form A Ball In Stainless Steel Size M4-M16

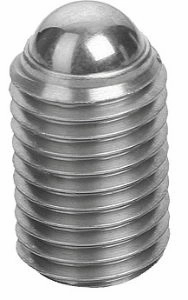

BALL-END THRUST SCREW WITHOUT HEAD, FORM:A BALL STAINLESS STEEL, M08, L=21,2, STAINLESS STEEL BRIGHT,

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

	D	DK	Form	L	Load rating max. kN (static load only)	SW	Price (Exc. Tax)	Stock
Filters
K0384.10410 View product	M4	2,5	A	10	3,5	2	£3.71	0
K0384.10412 View product	M4	2,5	A	12	3,5	2	£3.79	0
K0384.10416 View product	M4	2,5	A	16	3,5	2	£3.79	0
K0384.1046 View product	M4	2,5	A	6	3,5	2	£3.71	7
K0384.1048 View product	M4	2,5	A	8	3,5	2	£3.71	5
K0384.10510 View product	M5	3	A	10	4,5	2,5	£3.44	0
K0384.10512 View product	M5	3	A	12	4,5	2,5	£3.44	0
K0384.10516 View product	M5	3	A	16	4,5	2,5	£3.50	0
K0384.10520 View product	M5	3	A	20	4,5	2,5	£3.50	0
K0384.10525 View product	M5	3	A	25	4,5	2,5	£3.62	0
K0384.1058 View product	M5	3	A	8	4,5	2,5	£3.44	14
K0384.10610 View product	M6	4	A	10,8	9	3	£3.71	0
K0384.10612 View product	M6	4	A	12,8	9	3	£3.71	0
K0384.10616 View product	M6	4	A	16,8	9	3	£3.71	0
K0384.10620 View product	M6	4	A	20,8	9	3	£3.71	0
K0384.10625 View product	M6	4	A	25,8	9	3	£3.79	0
K0384.10810 View product	M8	5,5	A	11,2	10	4	£4.13	0
K0384.10812 View product	M8	5,5	A	13,2	10	4	£4.21	0
K0384.10816 View product	M8	5,5	A	17,2	15	4	£4.21	0
K0384.10820 View product	M8	5,5	A	21,2	15	4	£4.26	0
K0384.10825 View product	M8	5,5	A	26,2	15	4	£4.26	3
K0384.10830 View product	M8	5,5	A	31,2	15	4	£4.28	0
K0384.11012 View product	M10	7	A	13,7	20	5	£4.72	2
K0384.11016 View product	M10	7	A	17,7	20	5	£4.82	0
K0384.11020 View product	M10	7	A	21,7	20	5	£4.90	0
K0384.11025 View product	M10	7	A	26,7	20	5	£5.05	0
K0384.11035 View product	M10	7	A	36,7	20	5	£5.16	0
K0384.11216 View product	M12	8,5	A	18	30	6	£5.83	0
K0384.11220 View product	M12	8,5	A	22	30	6	£5.98	0
K0384.11230 View product	M12	8,5	A	32	30	6	£6.25	0
K0384.11240 View product	M12	8,5	A	42	30	6	£6.70	0
K0384.11620 View product	M16	12	A	23,3	60	8	£10.40	0
K0384.11625 View product	M16	12	A	28,3	60	8	£10.93	0
K0384.11635 View product	M16	12	A	38,3	60	8	£11.47	0
K0384.11650 View product	M16	12	A	53,3	60	8	£12.72	0
