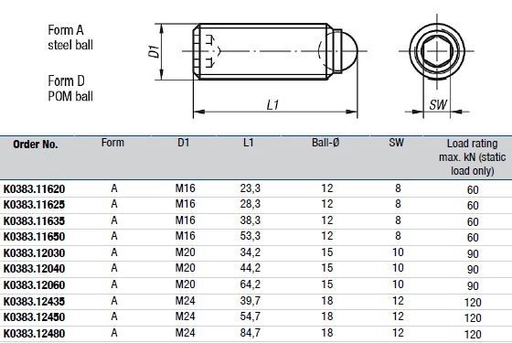

Ball End Thrust Screw. Without Head. Form A. M24 Thread. 39.7mm Long.

Item Code: K0383.12435

Ball End Thrust Screw. Without Head. Form A. M24 Thread. 39.7mm Long.

Item Code: K0383.12435

Ball End Thrust Screw. Without Head. Form A. M24 Thread. 39.7mm Long.

Material, surface finish:
Screw in tempered steel, quality class 10.9, black or stainless steel, natural finish; ball in ball-bearing steel, hardened with natural finish or stainless steel, natural finish Note:
Form A with full ball is used when a clean, polished pressure surface is required.
Further lengths have been designed especially so that Ball Pressure Screws can be glued up. They allow mechanical connecting elements with external thread to be made cost-effectively for small and medium-sized series. Statements on load capacity are not valid for stainless steel versions.

Quick Links

Dispatch by 08/07/25

D: M24

DK: 18

Form: A

L: 39,7

Load rating max. kN (static load only): 120

SW: 12

£18.25 ea. Excl VAT £21.90 ea. Inc VAT
