Item Code: K0382.20810

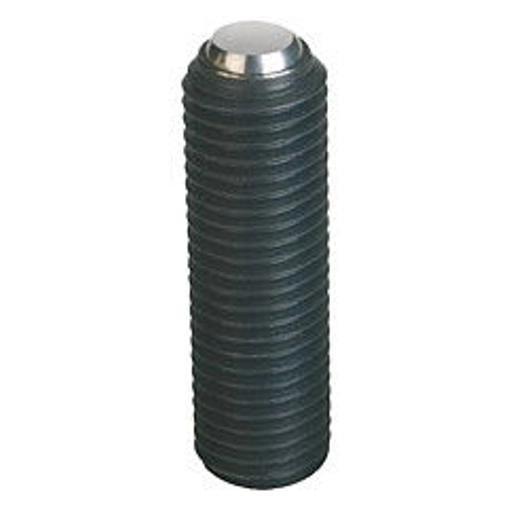

BALL-END THRUST SCREW WITHOUT HEAD, FORM:B FLATTENED BALL M08X1, L2=10,3, STEEL 10.9 BLACK, COMP:BALL-BEARING

Item Code: K0382.20810

BALL-END THRUST SCREW WITHOUT HEAD, FORM:B FLATTENED BALL M08X1, L2=10,3, STEEL 10.9 BLACK, COMP:BALL-BEARING

Material, surface finish:
Screw in tempered steel, quality class 10.9, black.
Ball in ball-bearing steel, hardened with natural finish. Note:
Form A with full ball is used when a clean, polished pressure surface is required. Surfaces which are not plane and parallel can be firmly clamped or supported with form B with flattened ball because the movable ball can adapt itself up to 9°. Fine thread enables extremely sensitive alignment of the ball pressure screws.

Quick Links

Dispatch by 08/07/25

5,5
M8X1
4,1
B
10,3
10
4

£5.33  ea. Excl VAT £6.40  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
25 + £4.37 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material, surface finish:
Screw in tempered steel, quality class 10.9, black.
Ball in ball-bearing steel, hardened with natural finish. Note:
Form A with full ball is used when a clean, polished pressure surface is required. Surfaces which are not plane and parallel can be firmly clamped or supported with form B with flattened ball because the movable ball can adapt itself up to 9°. Fine thread enables extremely sensitive alignment of the ball pressure screws.

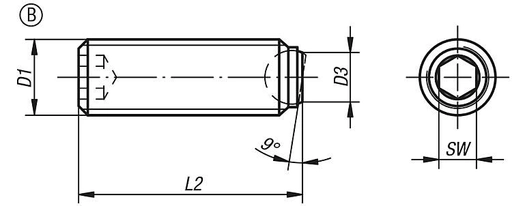

Ball Ø5,5
D1M8X1
D34,1
FormB
L210,3
Load rating max. kN (static load only)10
SW4
STP
Thread Size / Body DiameterM8X1
Length10.3mm
Body MaterialSteel
Ball / Head MaterialSteel
Head TypeFlat
