Item Code: K0366.25110090

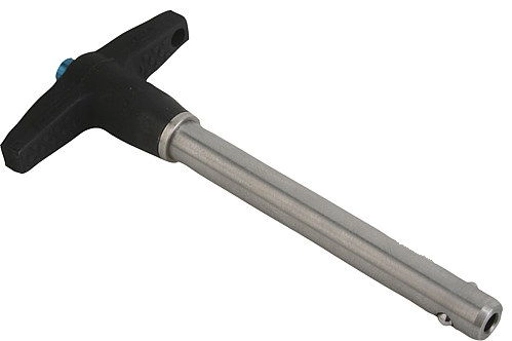

Ball Lock Pin With T Grip. 10mm Pin Diameter. 90mm Clamping Length. Stainless Steel.

Item Code: K0366.25110090

Ball Lock Pin With T Grip. 10mm Pin Diameter. 90mm Clamping Length. Stainless Steel.

Material:
Bolt in stainless steel 1.4542.
Grip aluminium die casting EN-AC 46000.
Push button in aluminium EN-AW 2024 T4.
Balls in stainless steel 1.4125.
Compression spring in stainless steel. Surface finish:
Bolt, hardened min. 40 HRC and passivated.
Grip black anodised.
Push button blue anodised.
Balls hardened 58 +4 HRC and passivated.
Passivated compression spring. Note:

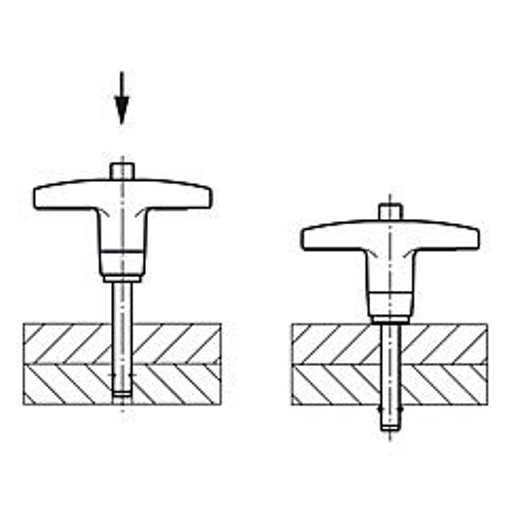

Ball locking bolts are used for fast and easy fixing and joining of parts and workpieces. The two balls can be disengaged by depressing the push button, so that the parts to be joined can be pegged.
When the push button is released the balls lock the connection safely and permanently. If required, the ball locking bolts can be provided with a holding rope. The bolt made of high-strength, hardened stainless steel is suitable for extreme loads and provides a very high level of wear protection. Shearing force double-edged (F) = S · t aB max. Accessory:
Safety helix cable K0367.10200
Restraining cable with eye K0367. .....
Key ring K0367.15/19/23

Quick Links

2 in stock

14,2
90
9
22,1
10
50,8
34,8
11,86
7,4
99
100,1
10

£38.20  ea. Excl VAT £45.84  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £31.32 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Bolt in stainless steel 1.4542.
Grip aluminium die casting EN-AC 46000.
Push button in aluminium EN-AW 2024 T4.
Balls in stainless steel 1.4125.
Compression spring in stainless steel. Surface finish:
Bolt, hardened min. 40 HRC and passivated.
Grip black anodised.
Push button blue anodised.
Balls hardened 58 +4 HRC and passivated.
Passivated compression spring. Note:
Ball locking bolts are used for fast and easy fixing and joining of parts and workpieces. The two balls can be disengaged by depressing the push button, so that the parts to be joined can be pegged.
When the push button is released the balls lock the connection safely and permanently. If required, the ball locking bolts can be provided with a holding rope. The bolt made of high-strength, hardened stainless steel is suitable for extreme loads and provides a very high level of wear protection. Shearing force double-edged (F) = S · t aB max. Accessory:
Safety helix cable K0367.10200
Restraining cable with eye K0367. .....
Key ring K0367.15/19/23

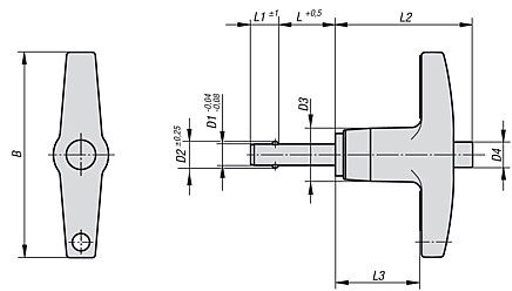

D314,2
L90
L19
L322,1
D110
B50,8
L234,8
D211,86
D47,4
L599
Shearing force double shear max.kN100,1
Receiving, hole, H1110
STP
Head MaterialAluminium
Pin MaterialStainless Steel
Length to Ball90mm
Pin Diameter10mm
