Locking Pin With Key Ring. 6mm Pin Diameter. 40mm Clamping Length. Stainless Steel.

Item Code: K0365.102306040

Locking Pin With Key Ring. 6mm Pin Diameter. 40mm Clamping Length. Stainless Steel.

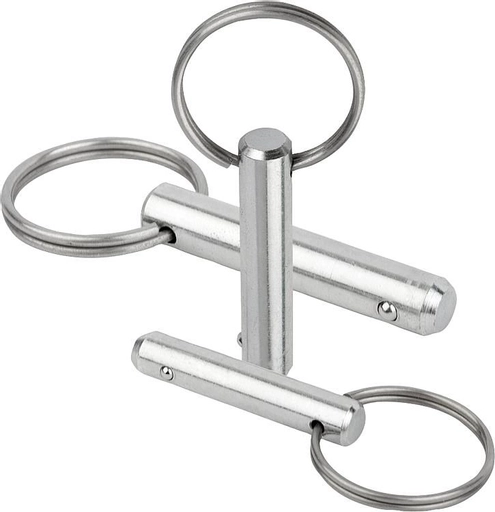

K0365-Locking-Pins-With-Key-Ring_1200x1200.jpg?

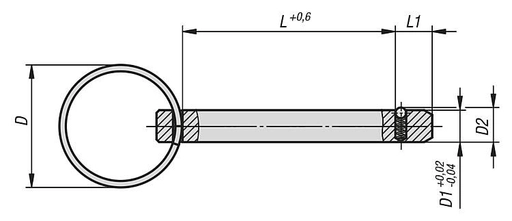

K0365-Locking-Pins-With-Key-Ring-Drawing_1200x1200.jpg?

Item Code: K0365.102306040

Locking Pin With Key Ring. 6mm Pin Diameter. 40mm Clamping Length. Stainless Steel.

Material:
Pin steel.
Key ring stainless steel.
Version:
Pins galvanized.
Key ring bright.
Note:
Locking pins are used for quick and easy fixating and joining of parts and workpieces.
Shearing force double shear (F) = S · t aB max.
The locking pins with key ring represent a cost-effective alternative to other locking pins.

Quick Links

2 in stock

D: 23

L: 40

L1: 7

D1: 6

D2: 6,5

L5: 47

Shearing force double shear max.kN: 22

£5.40 ea. Excl VAT £6.48 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
25 +	£4.43	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

D	23
L	40
L1	7
D1	6
D2	6,5
L5	47
Shearing force double shear max.kN	22

Downloads

STP

Specifications

Head Material	Stainless Steel
Pin Material	Steel
Length to Ball	40mm
Pin Diameter	6mm

Locking Pin With Key Ring. 6mm Pin Diameter. 40mm Clamping Length. Stainless Steel.

Locking Pin With Key Ring. 6mm Pin Diameter. 40mm Clamping Length. Stainless Steel.
