K0365 - Locking Pins In Plastic & Stainless Steel Hole Size 6-12mm

K0365 - Locking Pins In Plastic & Stainless Steel Hole Size 6-12mm

List view Grid view

Material:
Grip thermoplastic.
Steel parts stainless steel.

Version:
Grip black.
Stainless steel bright.

Note:
Locking pins are used for quick and easy fixating and joining of parts and workpieces.

Shearing force double-shear (F) = S · τ aB max.

Accessory:
Bushes for ball lock pins K0724
Safety spiral cable K0367
Retaining cable with loop K0367
Key ring K0367

Locking Pin With Mushroom Grip. 8mm Pin Diameter. 40mm Clamping Length. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

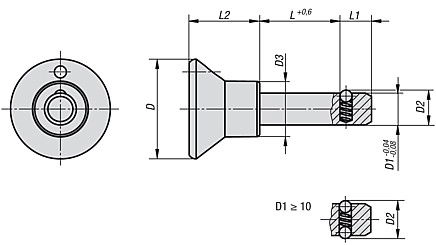

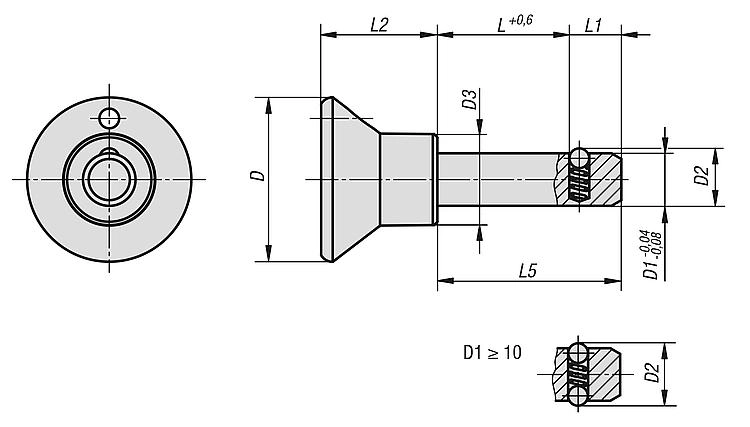

Line drawing placeholder

Move drawing here

	D	D1	D2	D3	L	L1	L2	L5	Receiving, hole, H11	Shearing force double shear max.kN	Price (Exc. Tax)	Stock
Filters
K0365.2506010 View product	25	6	6,5	14	10	7	17,7	17	6	22	£12.04	12
K0365.2506015 View product	25	6	6,5	14	15	7	17,7	22	6	22	£12.40	0
K0365.2506020 View product	25	6	6,5	14	20	7	17,7	27	6	22	£12.67	0
K0365.2506025 View product	25	6	6,5	14	25	7	17,7	32	6	22	£12.80	0
K0365.2506030 View product	25	6	6,5	14	30	7	17,7	37	6	22	£13.17	0
K0365.2506040 View product	25	6	6,5	14	40	7	17,7	47	6	22	£13.51	37
K0365.2506050 View product	25	6	6,5	14	50	7	17,7	57	6	22	£13.89	9
K0365.2508015 View product	25	8	8,75	14	15	8	17,7	23	8	38	£12.67	5
K0365.2508020 View product	25	8	8,75	14	20	8	17,7	28	8	38	£12.80	0
K0365.2508025 View product	25	8	8,75	14	25	8	17,7	33	8	38	£13.17	10
K0365.2508030 View product	25	8	8,75	14	30	8	17,7	38	8	38	£13.51	2
K0365.2508040 View product	25	8	8,75	14	40	8	17,7	48	8	38	£13.89	0
K0365.2508050 View product	25	8	8,75	14	50	8	17,7	58	8	38	£14.23	1
K0365.3310015 View product	33	10	12	19	15	9	24	24	10	60	£15.63	6
K0365.3310020 View product	33	10	12	19	20	9	24	29	10	60	£15.97	0
K0365.3310025 View product	33	10	12	19	25	9	24	34	10	60	£16.33	0
K0365.3310030 View product	33	10	12	19	30	9	24	39	10	60	£16.69	0
K0365.3310040 View product	33	10	12	19	40	9	24	49	10	60	£17.03	5
K0365.3310050 View product	33	10	12	19	50	9	24	59	10	60	£17.40	0
K0365.3312020 View product	33	12	14,5	19	20	10	24	30	12	86	£18.00	0
K0365.3312030 View product	33	12	14,5	19	30	10	24	40	12	86	£18.70	0
K0365.3312040 View product	33	12	14,5	19	40	10	24	50	12	86	£19.75	0
K0365.3312050 View product	33	12	14,5	19	50	10	24	60	12	86	£20.63	0
