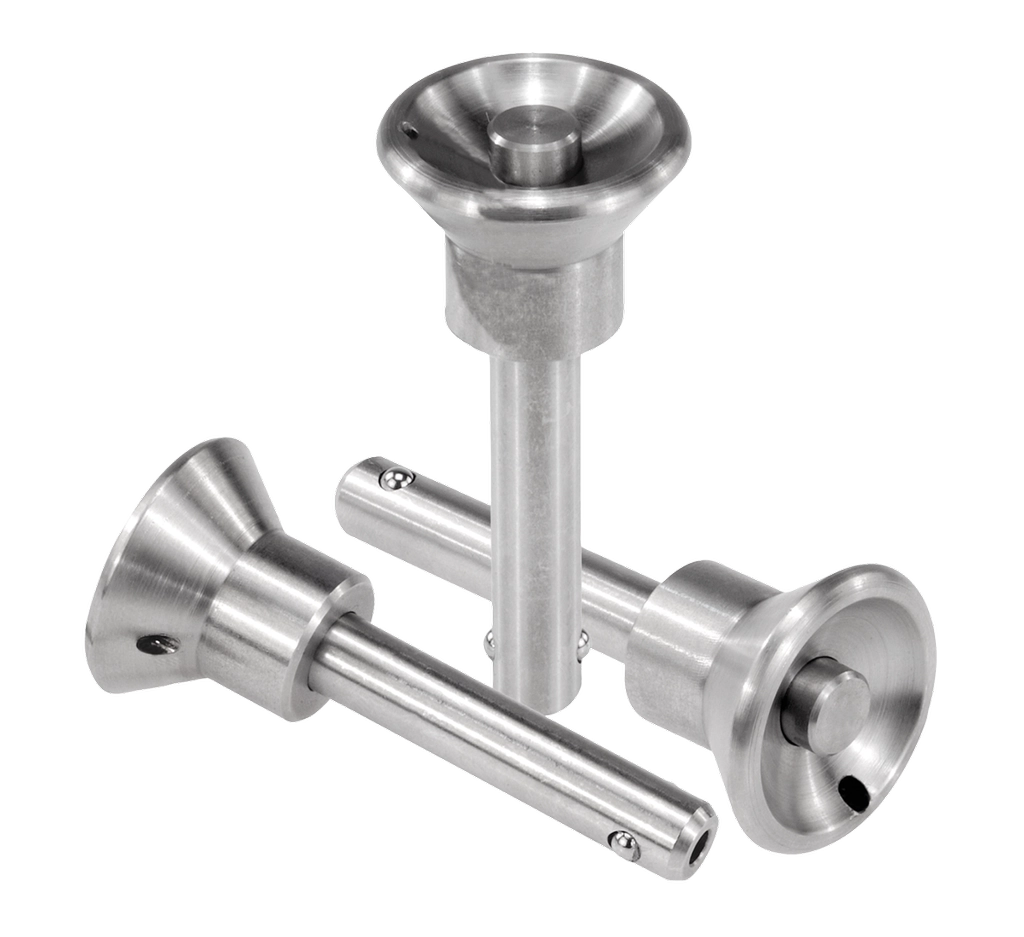

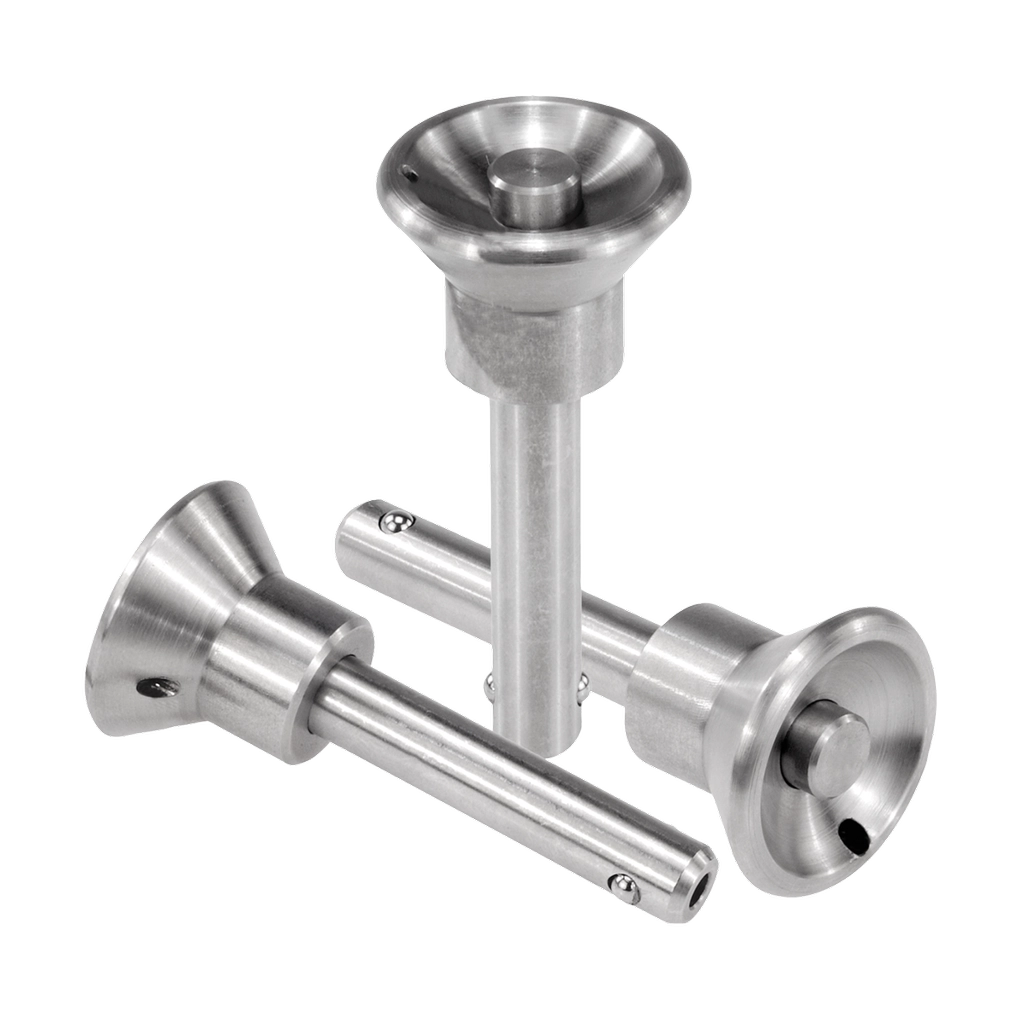

K0364 Inch - Ball Lock Pins With Stainless Steel Mushroom Grip

K0364 Inch - Ball Lock Pins With Stainless Steel Mushroom Grip

Material:
Metal parts stainless steel.

Version:
Bright.

Note:
Ball lock pins are used for easy fastening or joining of components or workpieces.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. Release the button to lock the balls and secure the connection.
Corrosion resistant. Option for connecting retaining cable.

Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.

For the inch series, dimensions D1 and L are in inches, all other dimensions are in mm.

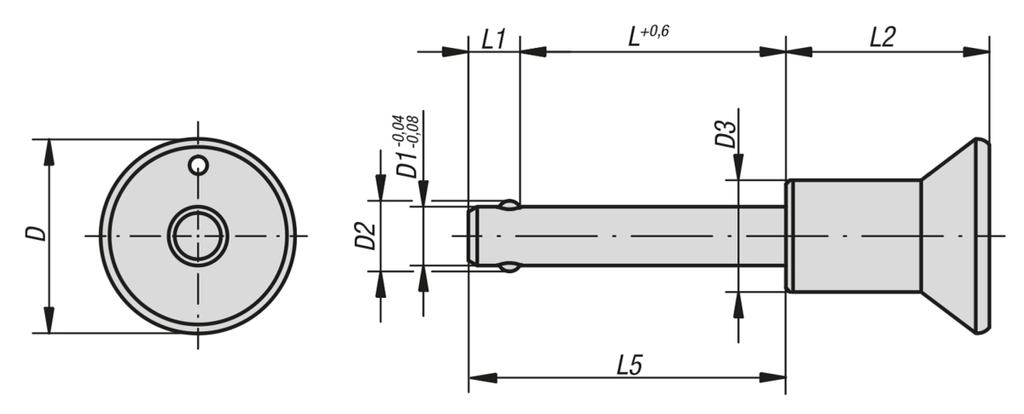

Drawing Reference:
1) Metal collar

ACCESSORY:
Locating bushings for ball lock pins K0724
Safety spiral cable K0367
Retaining cable with loop K0367
Key ring K0415

Select your sizes

Line drawing placeholder

Move drawing here

	D	D1	D2	D3	L	L1	L2	L5	Shearing force double shear max.kN	Price (Exc. Tax)	Stock
Filters
K0364.31CPL28 View product	33	1/2	15	19	1.75	10	34.6	54.45	96	£39.51	0
K0364.31CPL32 View product	33	1/2	15	19	2	10	34.6	60.8	96	£40.95	0
K0364.31CPL20 View product	33	1/2	15	19	1.25	10	34.6	41.75	96	£37.29	0
K0364.31CPL24 View product	33	1/2	15	19	1.5	10	34.6	48.1	96	£38.76	0
K0364.31CPL40 View product	33	1/2	15	19	3	10	34.6	86.2	96	£50.41	0
K0364.31CPL16 View product	33	1/2	15	19	1	10	34.6	35.4	96	£36.54	0
K0364.31CPL36 View product	33	1/2	15	19	2.5	10	34.6	73.5	96	£44.02	0
K0364.23CML08 View product	25	1/4	7.2	14	0.5	6.9	26.5	19.6	24	£27.18	0
K0364.23CML12 View product	25	1/4	7.2	14	0.75	6.9	26.5	25.95	24	£27.79	0
K0364.23CML16 View product	25	1/4	7.2	14	1	6.9	26.5	32.3	24	£28.40	0
K0364.23CML32 View product	25	1/4	7.2	14	2	6.9	26.5	57.7	24	£32.86	0
K0364.23CML24 View product	25	1/4	7.2	14	1.5	6.9	26.5	45	24	£30.73	0
K0364.23CML20 View product	25	1/4	7.2	14	1.25	6.9	26.5	38.65	24	£29.41	0
K0364.23CML28 View product	25	1/4	7.2	14	1.75	6.9	26.5	51.35	24	£32.16	0
K0364.23CLL12 View product	25	3/16	5.25	14	0.75	6	26.5	25.05	13	£25.57	0
K0364.23CLL16 View product	25	3/16	5.25	14	1	6	26.5	31.4	13	£27.45	0
K0364.23CLL08 View product	25	3/16	5.25	14	0.5	6	26.5	18.7	13	£23.30	0
K0364.23CLL20 View product	25	3/16	5.25	14	1.25	6	26.5	37.75	13	£27.86	0
K0364.31COL16 View product	33	3/8	11.5	19	1	8.8	34.6	34.2	54	£30.30	0
K0364.31COL28 View product	33	3/8	11.5	19	1.75	8.8	34.6	53.25	54	£32.50	0
K0364.31COL20 View product	33	3/8	11.5	19	1.25	8.8	34.6	40.55	54	£30.96	0
K0364.31COL24 View product	33	3/8	11.5	19	1.5	8.8	34.6	46.9	54	£31.97	0
K0364.31COL32 View product	33	3/8	11.5	19	2	8.8	34.6	59.6	54	£34.80	0
K0364.23CNL16 View product	25	5/16	9.5	14	1	7.9	26.5	33.3	38	£28.58	0
K0364.23CNL24 View product	25	5/16	9.5	14	1.5	7.9	26.5	46	38	£30.32	0
K0364.23CNL28 View product	25	5/16	9.5	14	1.75	7.9	26.5	52.35	38	£30.98	0
K0364.23CNL32 View product	25	5/16	9.5	14	2	7.9	26.5	58.7	38	£31.54	0
K0364.23CNL20 View product	25	5/16	9.5	14	1.25	7.9	26.5	39.65	38	£29.19	0
K0364.31CQL16 View product	33	5/8	19	20	1	13.3	34.6	38.7	150	£95.20	0
K0364.31CQL40 View product	33	5/8	19	20	3	13.3	34.6	89.5	150	£115.43	0
K0364.31CQL36 View product	33	5/8	19	20	2.5	13.3	34.6	76.8	150	£105.41	0
K0364.31CQL20 View product	33	5/8	19	20	1.25	13.3	34.6	45.05	150	£95.20	0
K0364.31CQL24 View product	33	5/8	19	20	1.5	13.3	34.6	51.4	150	£96.45	0
K0364.31CQL32 View product	33	5/8	19	20	2	13.3	34.6	64.1	150	£101.65	0
K0364.31CQL28 View product	33	5/8	19	20	1.75	13.3	34.6	57.75	150	£98.94	0
K0364.31CUL24 View product	33	7/16	13	19	1.5	9.7	34.6	47.8	74	£38.76	0
K0364.31CUL28 View product	33	7/16	13	19	1.75	9.7	34.6	54.15	74	£39.51	0
K0364.31CUL36 View product	33	7/16	13	19	2.5	9.7	34.6	73.2	74	£44.02	0
K0364.31CUL20 View product	33	7/16	13	19	1.25	9.7	34.6	41.45	74	£37.29	0
K0364.31CUL32 View product	33	7/16	13	19	2	9.7	34.6	60.5	74	£40.95	0
K0364.31CUL16 View product	33	7/16	13	19	1	9.7	34.6	35.1	74	£36.54	0
K0364.31CUL40 View product	33	7/16	13	19	3	9.7	34.6	85.9	74	£50.41	0
