K0364 - Ball Locking Bolts In Stainless Steel Size 5-16mm

K0364 - Ball Locking Bolts In Stainless Steel Size 5-16mm

List view Grid view

Material:
Metal parts stainless steel.

Version:
Bright.

Note:
Ball lock pins are used for easy fastening or joining of components or workpieces.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. Release the button to lock the balls and secure the connection.
Corrosion resistant. Option for connecting retaining cable.

Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.

Accessory:
Bushes for ball lock pins K0724
Safety spiral cable K0367
Retaining cable with loop K0367
Key ring K0367

Ball Lock Pin With Mushroom Grip. 5mm Pin Diameter. 15mm Clamping Length. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

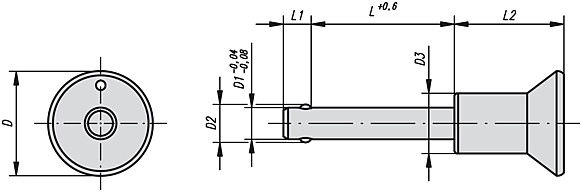

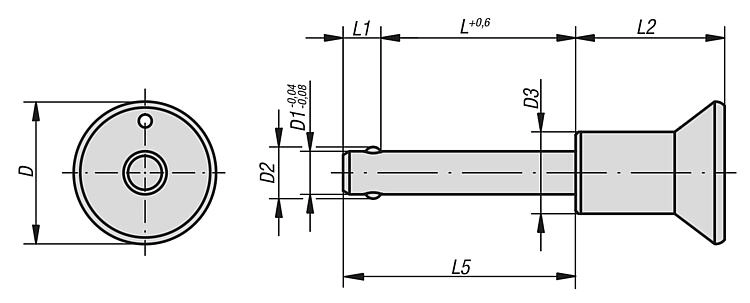

Line drawing placeholder

Move drawing here

	D	D1	D2	D3	L	L1	L2	L5	Receiving, hole, H11	Price (Exc. Tax)	Stock
Filters
K0364.2305010 View product	25	5	5,5	14	10	6	26,5	16	5	£17.55	6
K0364.2305015 View product	25	5	5,5	14	15	6	26,5	21	5	£17.87	4
K0364.2305020 View product	25	5	5,5	14	20	6	26,5	26	5	£18.22	7
K0364.2305025 View product	25	5	5,5	14	25	6	26,5	31	5	£19.56	6
K0364.2305030 View product	25	5	5,5	14	30	6	26,5	36	5	£19.82	5
K0364.2306010 View product	25	6	6,85	14	10	7	26,5	17	6	£18.72	1
K0364.2306015 View product	25	6	6,85	14	15	7	26,5	22	6	£19.35	0
K0364.2306020 View product	25	6	6,85	14	20	7	26,5	27	6	£19.79	5
K0364.2306025 View product	25	6	6,85	14	25	7	26,5	32	6	£20.21	5
K0364.2306030 View product	25	6	6,85	14	30	7	26,5	37	6	£20.95	3
K0364.2306035 View product	25	6	6,85	14	35	7	26,5	42	6	£21.43	1
K0364.2306040 View product	25	6	6,85	14	40	7	26,5	47	6	£21.91	5
K0364.2306045 View product	25	6	6,85	14	45	7	26,5	52	6	£22.88	7
K0364.2306050 View product	25	6	6,85	14	50	7	26,5	57	6	£23.41	4
K0364.2308020 View product	25	8	9,5	14	20	8	26,5	28	8	£19.98	3
K0364.2308025 View product	25	8	9,5	14	25	8	26,5	33	8	£20.36	1
K0364.2308030 View product	25	8	9,5	14	30	8	26,5	38	8	£20.80	0
K0364.2308035 View product	25	8	9,5	14	35	8	26,5	43	8	£21.23	8
K0364.2308040 View product	25	8	9,5	14	40	8	26,5	48	8	£21.62	5
K0364.2308045 View product	25	8	9,5	14	45	8	26,5	53	8	£22.05	0
K0364.2308050 View product	25	8	9,5	14	50	8	26,5	58	8	£22.48	7
K0364.3110020 View product	33	10	12	19	20	9	34,6	29	10	£21.28	6
K0364.3110025 View product	33	10	12	19	25	9	34,6	34	10	£21.60	5
K0364.3110030 View product	33	10	12	19	30	9	34,6	39	10	£22.03	5
K0364.3110035 View product	33	10	12	19	35	9	34,6	44	10	£22.38	5
K0364.3110040 View product	33	10	12	19	40	9	34,6	49	10	£22.80	8
K0364.3110045 View product	33	10	12	19	45	9	34,6	54	10	£23.14	0
K0364.3110050 View product	33	10	12	19	50	9	34,6	59	10	£24.80	0
K0364.3110060 View product	33	10	12	19	60	9	34,6	69	10	£26.77	1
K0364.3112025 View product	33	12	14,5	19	25	10	34,6	35	12	£26.04	6
K0364.3112030 View product	33	12	14,5	19	30	10	34,6	40	12	£26.56	5
K0364.3112035 View product	33	12	14,5	19	35	10	34,6	45	12	£27.10	8
K0364.3112040 View product	33	12	14,5	19	40	10	34,6	50	12	£27.60	6
K0364.3112045 View product	33	12	14,5	19	45	10	34,6	55	12	£28.14	0
K0364.3112050 View product	33	12	14,5	19	50	10	34,6	60	12	£29.19	2
K0364.3112060 View product	33	12	14,5	19	60	10	34,6	70	12	£31.35	3
K0364.3112070 View product	33	12	14,5	19	70	10	34,6	80	12	£33.57	5
K0364.3112080 View product	33	12	14,5	19	80	10	34,6	90	12	£35.93	5
K0364.3116030 View product	33	16	19	20	30	13,3	34,6	43,3	16	£67.81	5
K0364.3116035 View product	33	16	19	20	35	13,3	34,6	48,3	16	£68.25	5
K0364.3116040 View product	33	16	19	20	40	13,3	34,6	53,3	16	£68.67	5
K0364.3116045 View product	33	16	19	20	45	13,3	34,6	58,3	16	£70.48	5
K0364.3116050 View product	33	16	19	20	50	13,3	34,6	63,3	16	£72.39	5
K0364.3116060 View product	33	16	19	20	60	13,3	34,6	73,3	16	£75.07	5
K0364.3116070 View product	33	16	19	20	70	13,3	34,6	83,3	16	£78.66	5
K0364.3116080 View product	33	16	19	20	80	13,3	34,6	93,3	16	£82.21	5
