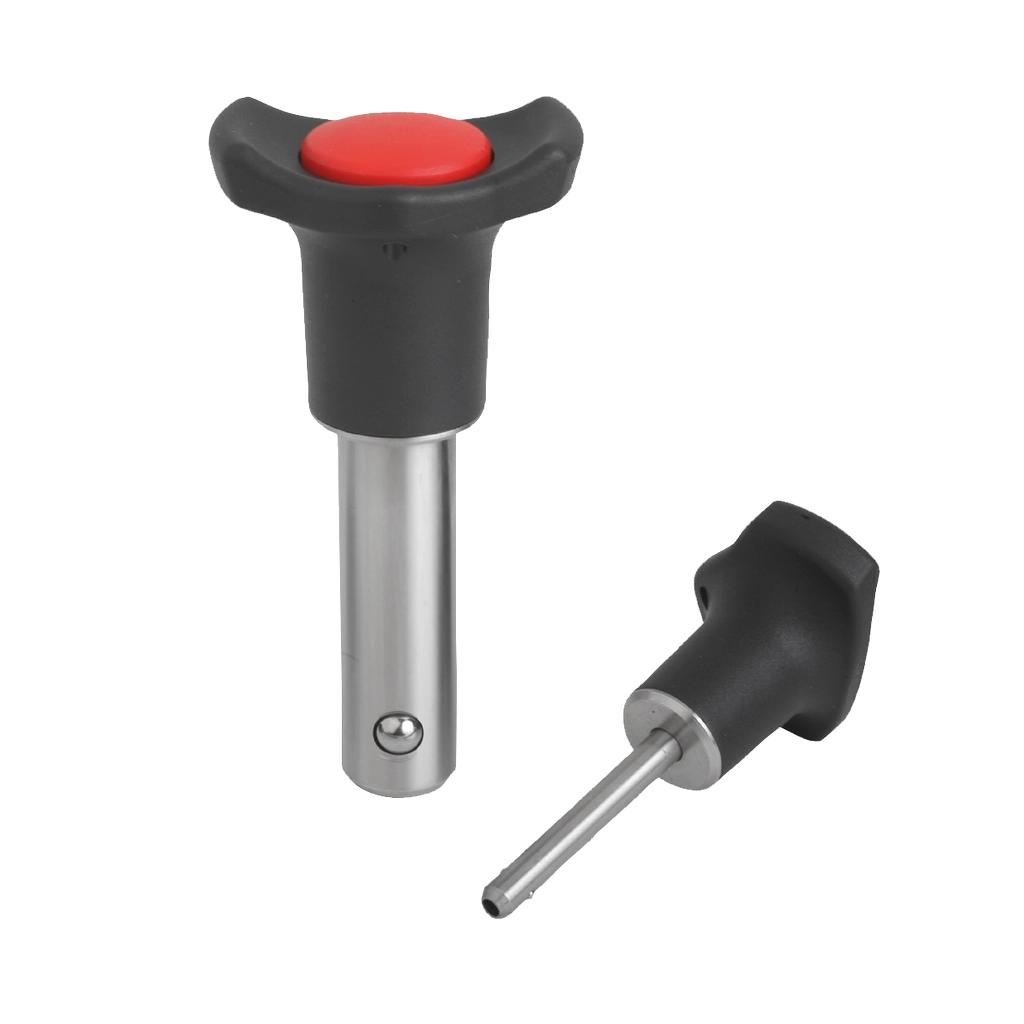

K0363 Inch - Ball Lock Pins With Plastic Grip And Metal Collar

K0363 Inch - Ball Lock Pins With Plastic Grip And Metal Collar

Material:
Grip and push button thermoplastic.
Metal parts stainless steel.

Version:
Grip black.
Push button traffic red.
Steel parts bright.

Note:
Ball lock pins are used for easy fastening or joining of components.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. When the push button is released, the balls lock the connection securely.
Shear force double shear (F) = S · τ aB max.
The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.
The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.
Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.
For the inch series, dimensions D1 and L are in inches, all other dimensions are in mm.

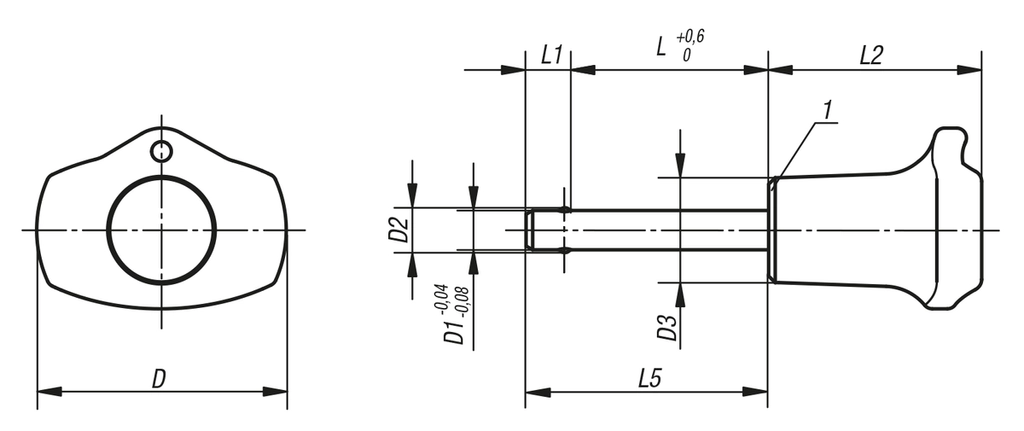

Drawing Reference:
1) Metal collar

ACCESSORY:
Locating bushings for ball lock pins K0724
Safety spiral cable K0367
Retaining cable with loop K0367
Key ring K0367

Select your sizes

Line drawing placeholder

Move drawing here

	D	D1	D2	D3	L	L1	L2	L5	Shearing force double shear max.kN	Price (Exc. Tax)	Stock
Filters
K0363.47CPL28 View product	47	1/2	15	23	1.75	10	40	54.45	96	£43.67	0
K0363.47CPL36 View product	47	1/2	15	23	2.5	10	40	73.5	96	£45.69	0
K0363.47CPL32 View product	47	1/2	15	23	2	10	40	60.8	96	£43.67	0
K0363.47CPL40 View product	47	1/2	15	23	3	10	40	86.2	96	£47.76	0
K0363.47CPL16 View product	47	1/2	15	23	1	10	40	35.4	96	£41.56	0
K0363.47CPL20 View product	47	1/2	15	23	1.25	10	40	41.75	96	£43.67	0
K0363.47CPL24 View product	47	1/2	15	23	1.5	10	40	48.1	96	£43.67	0
K0363.38CML08 View product	38	1/4	7.2	16	0.5	6.9	32.5	19.6	24	£23.81	0
K0363.38CML12 View product	38	1/4	7.2	16	0.75	6.9	32.5	25.95	24	£23.98	0
K0363.38CML20 View product	38	1/4	7.2	16	1.25	6.9	32.5	38.65	24	£25.32	0
K0363.38CML32 View product	38	1/4	7.2	16	2	6.9	32.5	57.7	24	£25.67	0
K0363.38CML16 View product	38	1/4	7.2	16	1	6.9	32.5	32.3	24	£23.98	0
K0363.38CML24 View product	38	1/4	7.2	16	1.5	6.9	32.5	45	24	£25.67	0
K0363.38CML28 View product	38	1/4	7.2	16	1.75	6.9	32.5	51.35	24	£25.67	0
K0363.38CLL16 View product	38	3/16	5.25	16	1	6	32.5	31.4	13	£23.98	0
K0363.38CLL20 View product	38	3/16	5.25	16	1.25	6	32.5	37.75	13	£25.32	0
K0363.38CLL08 View product	38	3/16	5.25	16	0.5	6	32.5	18.7	13	£23.81	0
K0363.38CLL12 View product	38	3/16	5.25	16	0.75	6	32.5	25.05	13	£23.98	0
K0363.47COL16 View product	47	3/8	11.5	23	1	8.8	40	34.2	54	£40.34	0
K0363.47COL20 View product	47	3/8	11.5	23	1.25	8.8	40	40.55	54	£42.40	0
K0363.47COL24 View product	47	3/8	11.5	23	1.5	8.8	40	46.9	54	£42.40	0
K0363.47COL32 View product	47	3/8	11.5	23	2	8.8	40	59.6	54	£42.76	0
K0363.47COL28 View product	47	3/8	11.5	23	1.75	8.8	40	53.25	54	£42.76	0
K0363.38CNL20 View product	38	5/16	9.5	16	1.25	7.9	32.5	39.65	38	£27.79	0
K0363.38CNL24 View product	38	5/16	9.5	16	1.5	7.9	32.5	46	38	£28.23	0
K0363.38CNL28 View product	38	5/16	9.5	16	1.75	7.9	32.5	52.35	38	£28.23	0
K0363.38CNL32 View product	38	5/16	9.5	16	2	7.9	32.5	58.7	38	£28.23	0
K0363.38CNL16 View product	38	5/16	9.5	16	1	7.9	32.5	33.3	38	£26.01	0
K0363.47CQL40 View product	47	5/8	19	23	3	13.3	40	89.5	150	£84.76	0
K0363.47CQL20 View product	47	5/8	19	23	1.25	13.3	40	45.05	150	£74.24	0
K0363.47CQL24 View product	47	5/8	19	23	1.5	13.3	40	51.4	150	£74.24	0
K0363.47CQL16 View product	47	5/8	19	23	1	13.3	40	38.7	150	£74.24	0
K0363.47CQL28 View product	47	5/8	19	23	1.75	13.3	40	57.75	150	£74.42	0
K0363.47CQL32 View product	47	5/8	19	23	2	13.3	40	64.1	150	£74.42	0
K0363.47CQL36 View product	47	5/8	19	23	2.5	13.3	40	76.8	150	£79.60	0
K0363.47CUL24 View product	47	7/16	13	23	1.5	9.7	40	47.8	74	£43.67	0
K0363.47CUL32 View product	47	7/16	13	23	2	9.7	40	60.5	74	£43.67	0
K0363.47CUL36 View product	47	7/16	13	23	2.5	9.7	40	73.2	74	£45.69	0
K0363.47CUL16 View product	47	7/16	13	23	1	9.7	40	35.1	74	£41.56	0
K0363.47CUL20 View product	47	7/16	13	23	1.25	9.7	40	41.45	74	£43.67	0
K0363.47CUL28 View product	47	7/16	13	23	1.75	9.7	40	54.15	74	£43.67	0
K0363.47CUL40 View product	47	7/16	13	23	3	9.7	40	85.9	74	£47.76	0
