K0363 - Ball Locking Bolts Self locking Size 5-16mm

K0363 - Ball Locking Bolts Self locking Size 5-16mm

List view Grid view

Material:
Grip and push button thermoplastic.
Metal parts stainless steel.

Version:
Grip black.
Push button traffic red.
Steel parts bright.

Note:
Ball lock pins are used for easy fastening or joining of components or workpieces.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. Release the button to lock the balls and secure the connection.
Form A is suitable for applications where high demands and precision are required.

Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.

Features:
Form A:
Pin ground, metal collar, high axial pull-out force

Accessory:
Safety spiral cable K0367
Retaining cable with loop K0367
Key ring K0367

Ball Lock Pin With Mushroom Grip. 10mm Pin Diameter. 25mm Clamping Length. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

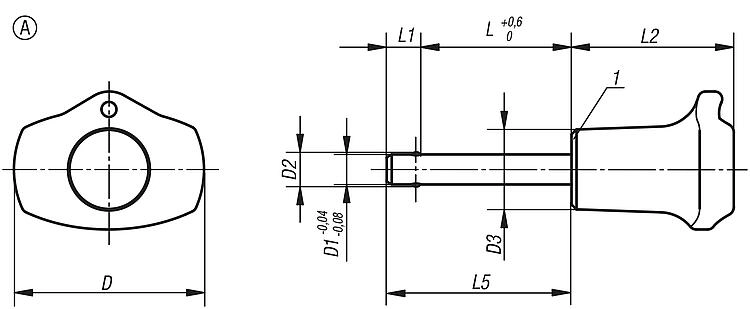

Line drawing placeholder

Move drawing here

	D	D1	D2	D3	L	L1	L2	L5	Receiving, hole, H11	Price (Exc. Tax)	Stock
Filters
K0363.3805010 View product	38	5	5,5	16	10	6	32,5	16	5	£17.25	8
K0363.3805015 View product	38	5	5,5	16	15	6	32,5	21	5	£17.25	0
K0363.3805020 View product	38	5	5,5	16	20	6	32,5	26	5	£17.36	4
K0363.3805025 View product	38	5	5,5	16	25	6	32,5	31	5	£17.36	1
K0363.3805030 View product	38	5	5,5	16	30	6	32,5	36	5	£18.34	6
K0363.3806010 View product	38	6	6,85	16	10	7	32,5	17	6	£17.25	4
K0363.3806015 View product	38	6	6,85	16	15	7	32,5	22	6	£17.25	14
K0363.3806020 View product	38	6	6,85	16	20	7	32,5	27	6	£17.36	5
K0363.3806025 View product	38	6	6,85	16	25	7	32,5	32	6	£17.36	6
K0363.3806030 View product	38	6	6,85	16	30	7	32,5	37	6	£18.34	40
K0363.3806035 View product	38	6	6,85	16	35	7	32,5	42	6	£18.34	29
K0363.3806040 View product	38	6	6,85	16	40	7	32,5	47	6	£18.59	2
K0363.3806045 View product	38	6	6,85	16	45	7	32,5	52	6	£18.59	3
K0363.3806050 View product	38	6	6,85	16	50	7	32,5	57	6	£18.59	9
K0363.3808020 View product	38	8	9,5	16	20	8	32,5	28	8	£18.84	0
K0363.3808025 View product	38	8	9,5	16	25	8	32,5	33	8	£18.84	6
K0363.3808030 View product	38	8	9,5	16	30	8	32,5	38	8	£20.13	0
K0363.3808035 View product	38	8	9,5	16	35	8	32,5	43	8	£20.13	0
K0363.3808040 View product	38	8	9,5	16	40	8	32,5	48	8	£20.44	4
K0363.3808045 View product	38	8	9,5	16	45	8	32,5	53	8	£20.44	4
K0363.3808050 View product	38	8	9,5	16	50	8	32,5	58	8	£20.44	6
K0363.4710020 View product	47	10	12	23	20	9	40	29	10	£29.22	3
K0363.4710025 View product	47	10	12	23	25	9	40	34	10	£29.22	2
K0363.4710030 View product	47	10	12	23	30	9	40	39	10	£30.72	6
K0363.4710035 View product	47	10	12	23	35	9	40	44	10	£30.72	5
K0363.4710040 View product	47	10	12	23	40	9	40	49	10	£30.72	5
K0363.4710045 View product	47	10	12	23	45	9	40	54	10	£31.01	0
K0363.4710050 View product	47	10	12	23	50	9	40	59	10	£31.01	1
K0363.4710060 View product	47	10	12	23	60	9	40	69	10	£32.21	0
K0363.4712025 View product	47	12	14,5	23	25	10	40	35	12	£30.11	6
K0363.4712030 View product	47	12	14,5	23	30	10	40	40	12	£31.62	7
K0363.4712035 View product	47	12	14,5	23	35	10	40	45	12	£31.62	5
K0363.4712040 View product	47	12	14,5	23	40	10	40	50	12	£31.62	8
K0363.4712045 View product	47	12	14,5	23	45	10	40	55	12	£31.62	7
K0363.4712050 View product	47	12	14,5	23	50	10	40	60	12	£31.62	9
K0363.4712060 View product	47	12	14,5	23	60	10	40	70	12	£33.11	4
K0363.4712070 View product	47	12	14,5	23	70	10	40	80	12	£34.61	0
K0363.4712080 View product	47	12	14,5	23	80	10	40	90	12	£34.61	3
K0363.4716030 View product	47	16	19	23	30	13	40	43	16	£53.79	8
K0363.4716035 View product	47	16	19	23	35	13	40	48	16	£53.79	5
K0363.4716040 View product	47	16	19	23	40	13	40	53	16	£53.79	5
K0363.4716045 View product	47	16	19	23	45	13	40	58	16	£53.91	0
K0363.4716050 View product	47	16	19	23	50	13	40	63	16	£53.91	16
K0363.4716060 View product	47	16	19	23	60	13	40	73	16	£57.66	0
K0363.4716070 View product	47	16	19	23	70	13	40	83	16	£57.66	5
K0363.4716080 View product	47	16	19	23	80	13	40	93	16	£61.40	7
