Item Code: K0348.0704101

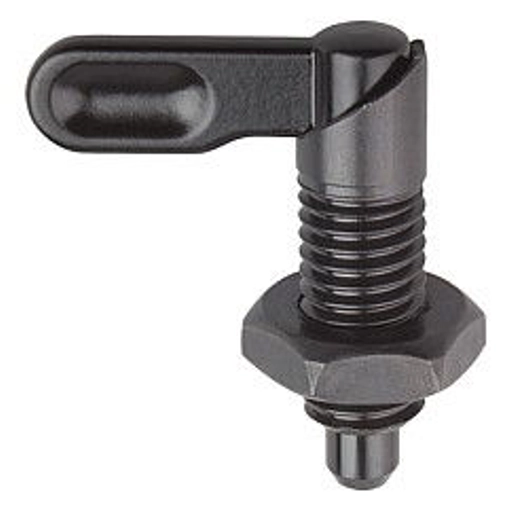

Cam Action Indexing Plunger. With Grip.M10 Thread. 1mm Thread Pitch. 4mm Pin Diameter. Steel.

Item Code: K0348.0704101

Cam Action Indexing Plunger. With Grip.M10 Thread. 1mm Thread Pitch. 4mm Pin Diameter. Steel.

Material:
Steel quality class 5.8. Surface finish:
Black oxide finish.
Locking pin hardened and ground. Note:
Locking bolts with grip are used when the locking pin should not project at certain times. Turning the bolt through 180° pulls in the locking pin.
A locking notch ensures that the locking bolt is held in this position.

Quick Links

Dispatch by 05/07/25

9
3
4
M10X1
10
D
1
6
38
25
20
8
14
17

£13.51  ea. Excl VAT £16.21  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £11.08 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Steel quality class 5.8. Surface finish:
Black oxide finish.
Locking pin hardened and ground. Note:
Locking bolts with grip are used when the locking pin should not project at certain times. Turning the bolt through 180° pulls in the locking pin.
A locking notch ensures that the locking bolt is held in this position.

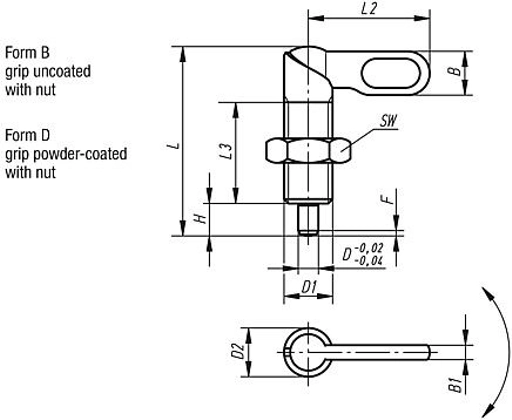

B9
B13
D4
D1M10X1
D210
FormD
Fx30°1
H6
L38
L125
L320
Spring force initial pressure F1 approx. N8
Spring force final pressure F2 approx. N14
SW17
STP
TypeLockout
Body MaterialSteel
Thread SizeM10
Pin Diameter4mm
Pin Length6mm
