K0348 Indexing Plungers Form C Without Nut Powder Coated

K0348 Indexing Plungers Form C Without Nut Powder Coated

List view Grid view

Material:
Steel grade 5.8.

Version:
Black oxidised.
Pin hardened and ground.

Note:
Cam-action indexing plungers are used when the indexing pin should not project all the time. Turning the handle through 180° retracts the pin and a notch ensures that the handle remains in this position.

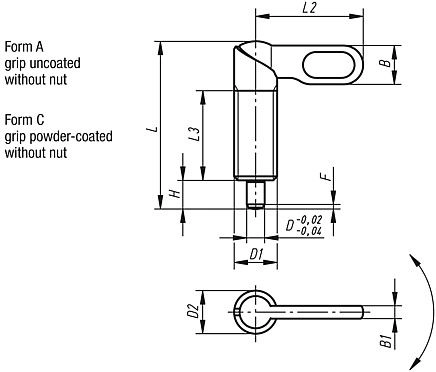

Drawing reference:
Form C: grip powder-coated without nut

Cam Action Indexing Plunger. With Grip.M12 Thread. 1.5mm Thread Pitch. 6mm Pin Diameter. Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

	B	B1	D	D1	D2	Form	Fx30°	H	L	L1	L3	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price (Exc. Tax)	Stock
Filters
K0348.060410 View product	9	3	4	M10	10	C	1	6	38	25	20	8	14	£13.80	0
K0348.0604101 View product	9	3	4	M10X1	10	C	1	6	38	25	20	8	14	£13.80	0
K0348.060510 View product	9	3	5	M10	10	C	1,3	6	38	25	20	8	14	£13.80	0
K0348.0605101 View product	9	3	5	M10X1	10	C	1,3	6	38	25	20	8	14	£13.80	0
K0348.060512 View product	10,8	3,6	5	M12	12	C	1,3	8	46,8	30	25	8	15	£14.07	0
K0348.0605121 View product	10,8	3,6	5	M12x1,5	12	C	1,3	8	46,8	30	25	8	15	£14.07	0
K0348.060610 View product	9	3	6	M10	10	C	1,8	6	38	25	20	8	14	£13.80	0
K0348.0606101 View product	9	3	6	M10X1	10	C	1,8	6	38	25	20	8	14	£13.80	0
K0348.060612 View product	10,8	3,6	6	M12	12	C	1,8	8	46,8	30	25	8	15	£14.07	0
K0348.0606121 View product	10,8	3,6	6	M12x1,5	12	C	1,8	8	46,8	30	25	8	15	£14.07	0
K0348.060616 View product	14,4	4,8	6	M16	16	C	1,8	10	60,4	40	32	15	35	£16.83	0
K0348.0606161 View product	14,4	4,8	6	M16x1,5	16	C	1,8	10	60,4	40	32	15	35	£16.83	0
K0348.060812 View product	10,8	3,6	8	M12	12	C	2,3	8	46,8	30	25	8	15	£14.07	0
K0348.0608121 View product	10,8	3,6	8	M12x1,5	12	C	2,3	8	46,8	30	25	8	15	£14.07	0
K0348.060816 View product	14,4	4,8	8	M16	16	C	2,3	10	60,4	40	32	15	35	£16.83	0
K0348.0608161 View product	14,4	4,8	8	M16x1,5	16	C	2,3	10	60,4	40	32	15	35	£16.83	0
K0348.060820 View product	18	6	8	M20	20	C	2,3	12	70	50	35	20	60	£19.07	0
K0348.0608201 View product	18	6	8	M20x1,5	20	C	2,3	12	70	50	35	20	60	£19.07	0
K0348.061016 View product	14,4	4,8	10	M16	16	C	2,8	10	60,4	40	32	15	35	£16.83	0
K0348.0610161 View product	14,4	4,8	10	M16x1,5	16	C	2,8	10	60,4	40	32	15	35	£16.83	0
K0348.061020 View product	18	6	10	M20	20	C	2,8	12	70	50	35	20	60	£19.07	0
K0348.0610201 View product	18	6	10	M20x1,5	20	C	2,8	12	70	50	35	20	60	£19.07	0
K0348.061220 View product	18	6	12	M20	20	C	3	12	70	50	35	20	60	£19.07	0
K0348.0612201 View product	18	6	12	M20x1,5	20	C	3	12	70	50	35	20	60	£19.07	0
