K0348 - Indexing Plungers With Grip In Steel Size M10-M20
Back to K0348 Indexing Plungers Form A Without Nut Natural Finish

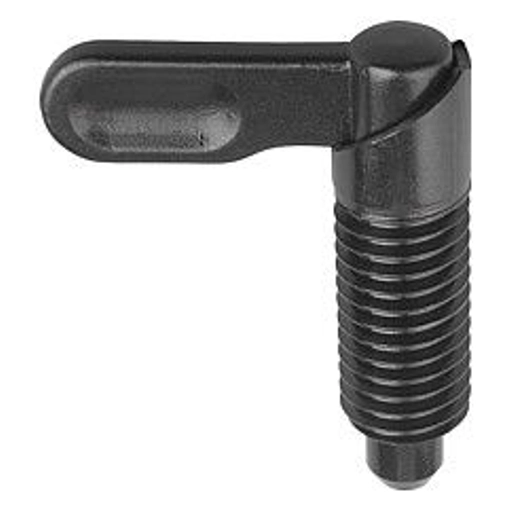

Cam Action Indexing Plunger. M10 Thread. 1.5mm Thread Pitch. 4mm Pin Diameter. Steel.

Item Code: K0348.040410

Cam Action Indexing Plunger. M10 Thread. 1.5mm Thread Pitch. 4mm Pin Diameter. Steel.

Item Code: K0348.040410

Cam Action Indexing Plunger. M10 Thread. 1.5mm Thread Pitch. 4mm Pin Diameter. Steel.

Material:
Steel quality class 5.8. Surface finish:
Black oxide finish.
Locking pin hardened and ground. Note:
Locking bolts with grip are used when the locking pin should not project at certain times. Turning the bolt through 180° pulls in the locking pin.
A locking notch ensures that the locking bolt is held in this position.

Quick Links

Dispatch by 10/06/25

Form: A

D: 4

L: 38

L1: 25

L3: 20

D1: M10

B: 9

H: 6

B1: 3

D2: 10

Fx30°: 1

Spring force initial pressure F1 approx. N: 8

Spring force final pressure F2 approx. N: 14

£12.89 ea. Excl VAT £15.47 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£10.57	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

Form	A
D	4
L	38
L1	25
L3	20
D1	M10
B	9
H	6
B1	3
D2	10
Fx30°	1
Spring force initial pressure F1 approx. N	8
Spring force final pressure F2 approx. N	14

Downloads

STP

Specifications

Type	Lockout
Body Material	Steel
Thread Size	M10
Pin Diameter	4mm
Pin Length	6mm

Cam Action Indexing Plunger. M10 Thread. 1.5mm Thread Pitch. 4mm Pin Diameter. Steel.

Cam Action Indexing Plunger. M10 Thread. 1.5mm Thread Pitch. 4mm Pin Diameter. Steel.
