Item Code: K0342.4004

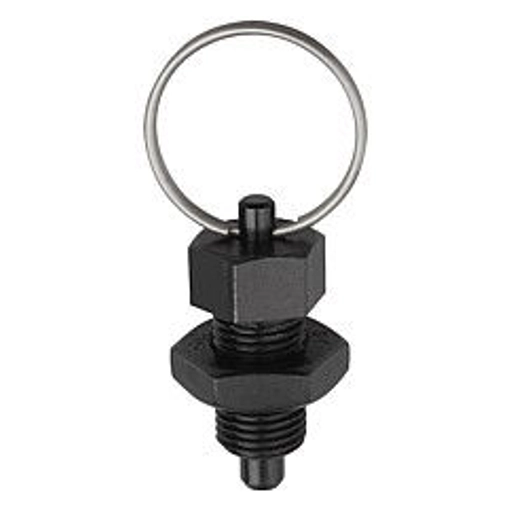

Indexing Plunger. M8 Thread. 1mm Thread Pitch. Without Locking Slot. Hardened. Steel..

Item Code: K0342.4004

Indexing Plunger. M8 Thread. 1mm Thread Pitch. Without Locking Slot. Hardened. Steel..

Material:
- Steel version, locking pin hardened:
quality class 5.8.
- Stainless steel version, locking pin hardened:
threaded sleeve 1.4305.
Locking pin 1.4034.
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305.
Locking pin 1.4305. Key ring 1.4310, natural finish. Surface finish:
- Steel version, locking pin hardened:
black oxide finish, locking pin ground.
- Stainless steel version, locking pin hardened:
natural finish, locking pin ground.
- Stainless steel version, locking pin not hardened:
natural finish, locking pin ground. Note:
Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been disengaged. The key ring is also suitable for actuation of the locking bolt, for example automatically (programme-controlled) with the aid of a pneumatic cylinder or actuation by remote control with bowden cables.

Quick Links

Dispatch by 08/07/25

4
M8X1
15
1
40
15
6
13
without locknut
6
12
10
13
4

£6.24  ea. Excl VAT £7.49  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
25 + £5.12 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
- Steel version, locking pin hardened:
quality class 5.8.
- Stainless steel version, locking pin hardened:
threaded sleeve 1.4305.
Locking pin 1.4034.
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305.
Locking pin 1.4305. Key ring 1.4310, natural finish. Surface finish:
- Steel version, locking pin hardened:
black oxide finish, locking pin ground.
- Stainless steel version, locking pin hardened:
natural finish, locking pin ground.
- Stainless steel version, locking pin not hardened:
natural finish, locking pin ground. Note:
Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been disengaged. The key ring is also suitable for actuation of the locking bolt, for example automatically (programme-controlled) with the aid of a pneumatic cylinder or actuation by remote control with bowden cables.
D4
D1M8X1
D415
Fx30°1
L40
L115
L26
L413
Locknutwithout locknut
Spring force initial pressure F1 approx. N6
Spring force final pressure F2 approx. N12
SW110
SW213
Travel S4
STP
TypeNon Lockout
Body MaterialSteel
Thread SizeM8
Pin Diameter4mm
Pin Length4mm
