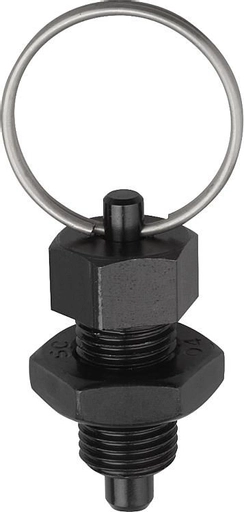

Indexing Plunger. M10 Thread. 1mm Thread Pitch. Without Locking Slot. Hardened. Steel..

Item Code: K0342.4105

Indexing Plunger. M10 Thread. 1mm Thread Pitch. Without Locking Slot. Hardened. Steel..

Indexing-Plunger-With-Nut_1200x1200.jpg?

Item Code: K0342.4105

Indexing Plunger. M10 Thread. 1mm Thread Pitch. Without Locking Slot. Hardened. Steel..

Material:
Steel version:
Indexing pin hardened:
grade 5.8.
Key ring 1.4310, bright.
Version:
Steel version:
Indexing pin hardened, ground, black oxidised.
Note:
Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been disengaged. The key ring is also suitable for automatic actuation of the indexing plunger by e.g. programme-controlled pneumatic cylinder or by remote control using bowden cables.

Quick Links

2 in stock

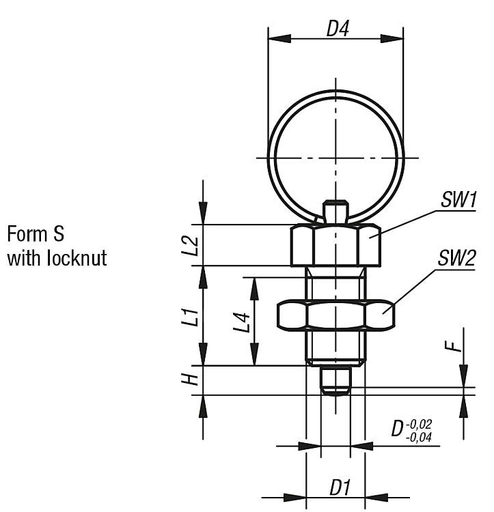

D: 5

D1: M10X1

D4: 23

Fx30°: 1,3

L: 52

L1: 17

L2: 7

L4: 15

Locknut: without locknut

Spring force initial pressure F1 approx. N: 5

Spring force final pressure F2 approx. N: 12

SW1: 13

SW2: 17

Travel S: 5
