Item Code: K0342.14105

Indexing Plunger. M10 Thread. 1mm Thread Pitch. Without Locking Slot. Not Hardened. Stainless Steel.

Item Code: K0342.14105

Indexing Plunger. M10 Thread. 1mm Thread Pitch. Without Locking Slot. Not Hardened. Stainless Steel.

Material:
- Steel version, locking pin hardened:
quality class 5.8.
- Stainless steel version, locking pin hardened:
threaded sleeve 1.4305.
Locking pin 1.4034.
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305.
Locking pin 1.4305. Key ring 1.4310, natural finish. Surface finish:
- Steel version, locking pin hardened:
black oxide finish, locking pin ground.
- Stainless steel version, locking pin hardened:
natural finish, locking pin ground.
- Stainless steel version, locking pin not hardened:
natural finish, locking pin ground. Note:
Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been disengaged. The key ring is also suitable for actuation of the locking bolt, for example automatically (programme-controlled) with the aid of a pneumatic cylinder or actuation by remote control with bowden cables.

Quick Links

5 in stock

5
52
17
M10X1
7
23
without locknut
15
13
17
1,3
5
12
5

£10.16  ea. Excl VAT £12.19  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
25 + £8.33 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
- Steel version, locking pin hardened:
quality class 5.8.
- Stainless steel version, locking pin hardened:
threaded sleeve 1.4305.
Locking pin 1.4034.
- Stainless steel version, locking pin not hardened:
threaded sleeve 1.4305.
Locking pin 1.4305. Key ring 1.4310, natural finish. Surface finish:
- Steel version, locking pin hardened:
black oxide finish, locking pin ground.
- Stainless steel version, locking pin hardened:
natural finish, locking pin ground.
- Stainless steel version, locking pin not hardened:
natural finish, locking pin ground. Note:
Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been disengaged. The key ring is also suitable for actuation of the locking bolt, for example automatically (programme-controlled) with the aid of a pneumatic cylinder or actuation by remote control with bowden cables.

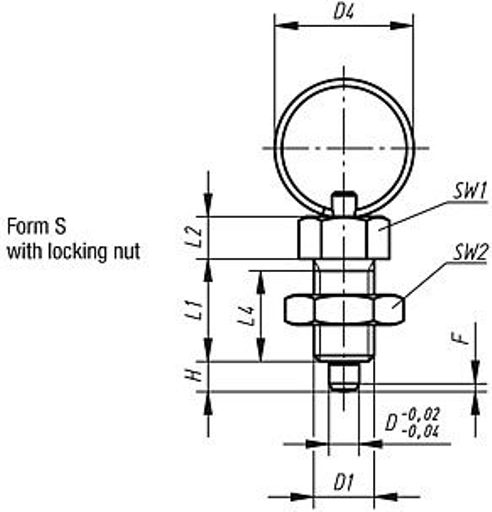

D5
L52
L117
D1M10X1
L27
D423
Locknutwithout locknut
L415
SW113
SW217
Fx30°1,3
Spring force initial pressure F1 approx. N5
Spring force final pressure F2 approx. N12
Travel S5
STP
TypeNon Lockout
Body MaterialStainless Steel
Thread SizeM10
Pin Diameter5mm
Pin Length5mm
