Product description:

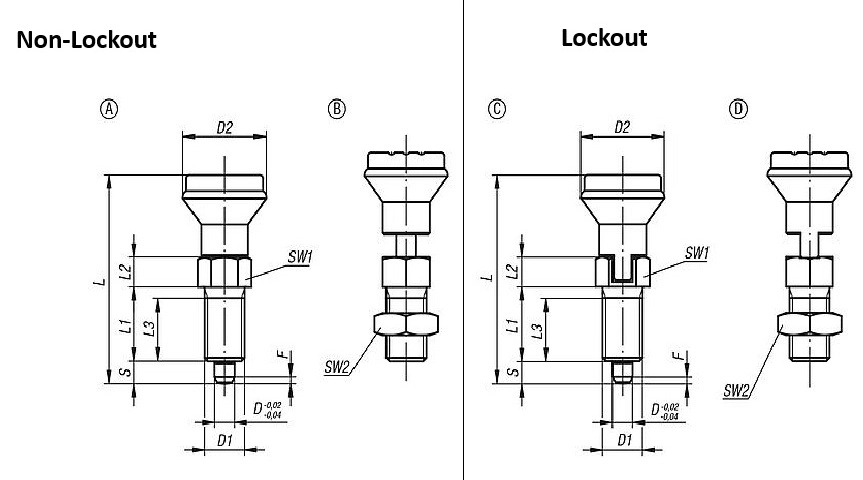

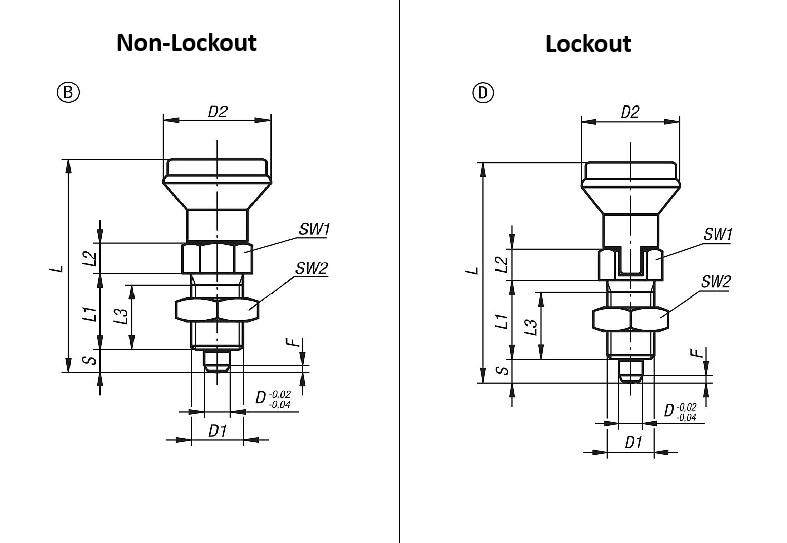

Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form C or D is recommended for applications in which the pin is disengaged over extended periods and should be prevented from springing back.
Material:
Steel version:
Grub screw and indexing pin steel.
Mushroom grip black grey thermoplastic.
Version:
Steel version:
Threaded sleeve black oxidised.
Indexing pin hardened, ground and black oxidised.
Mushroom grip black grey.
Accessory:
Spacer rings K0665.
Fastening sets for thin-walled parts K2146.
Quick Filters
Choose Vertical Base Type
Flat
Side Mount
Straight
Choose Horizontal Base Type
Flat
Side Mount
Straight
Choose Stroke Length
0-40mm
41-80mm
81mm+
Choose Type
Hook
Latch
Vertical Latch
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||
K0339.2105 View productIndexing Plunger. M10 Thread. 1mm Thread Pitch. 5mm Pin Diameter. Without Locking Slot. Hardened. Steel. |
Black | 5 | M10X1 | 21 | 1.3 | 47 | 17 | 7 | 15 | with locknut | No | 12 | 5 | Hardened | 5 | £8.48 £10.18 |
0 Dispatched 03/07/25 |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||
K0339.2206 View productIndexing Plunger. M12 Thread. 1.5mm Thread Pitch. 6mm Pin Diameter. Without Locking Slot. Hardened. Steel. |
Black | 6 | M12X1.5 | 25 | 1.8 | 56 | 20 | 8 | 17 | with locknut | No | 14 | 6 | Hardened | 6 | £9.39 £11.27 |
13 13 in stock |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||
K0339.2308 View productIndexing Plunger. M16 Thread. 1.5mm Thread Pitch. 8mm Pin Diameter. Without Locking Slot. Hardened. Steel. |
Black | 8 | M16x1.5 | 33 | 2.3 | 74 | 26 | 10 | 23 | with locknut | No | 35 | 15 | Hardened | 8 | £12.30 £14.76 |
7 7 in stock |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||
K0339.2410 View productIndexing Plunger. M20 Thread. 1.5mm Thread Pitch. 10mm Pin Diameter. Without Locking Slot. Hardened. Steel. |
Black | 10 | M20x1.5 | 33 | 2.8 | 80 | 28 | 12 | 25 | with locknut | No | 34 | 15 | Hardened | 10 | £17.81 £21.37 |
0 Dispatched 03/07/25 |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||
K0339.4105 View productIndexing Plunger. M10 Thread. 1.5mm Thread Pitch. 5mm Pin Diameter. With Locking Slot. Hardened. Steel. |
Black | 5 | M10X1 | 21 | 1.3 | 47 | 17 | 7 | 15 | with locknut | Yes | 12 | 5 | Hardened | 5 | £10.58 £12.70 |
0 Dispatched 03/07/25 |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||
K0339.4206 View productIndexing Plunger. M12 Thread. 1.5mm Thread Pitch. 6mm Pin Diameter. With Locking Slot. Hardened. Steel. |
Black | 6 | M12X1.5 | 25 | 1.8 | 56 | 20 | 8 | 17 | with locknut | Yes | 14 | 6 | Hardened | 6 | £11.88 £14.26 |
0 Dispatched 03/07/25 |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||
K0339.4308 View productIndexing Plunger. M16 Thread. 1.5mm Thread Pitch. 8mm Pin Diameter. With Locking Slot. Hardened. Steel. |
Black | 8 | M16x1.5 | 33 | 2.3 | 74 | 26 | 10 | 23 | with locknut | Yes | 35 | 15 | Hardened | 8 | £14.34 £17.21 |
0 Dispatched 03/07/25 |
Component colour |
D |
D1 |
D2 |
Fx30° |
L |
L1 |
L2 |
L3 |
Locknut |
Lockout |
Spring force final pressure F2 approx. N |
Spring force initial pressure F1 approx. N |
Surface finish / body |
Travel S |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
|||||||||||||||||||
K0339.4410 View productIndexing Plunger. M20 Thread. 1.5mm Thread Pitch. 10mm Pin Diameter. With Locking Slot. Hardened. Steel. |
Black | 10 | M20x1.5 | 33 | 2.8 | 80 | 28 | 12 | 25 | with locknut | Yes | 34 | 15 | Hardened | 10 | £23.00 £27.60 |
0 Dispatched 03/07/25 |
